Drastic Technologies Releases Software Test Pattern Generator
High Quality Test Patterns for Setup, Calibration, Signal Chain Integrity Monitoring

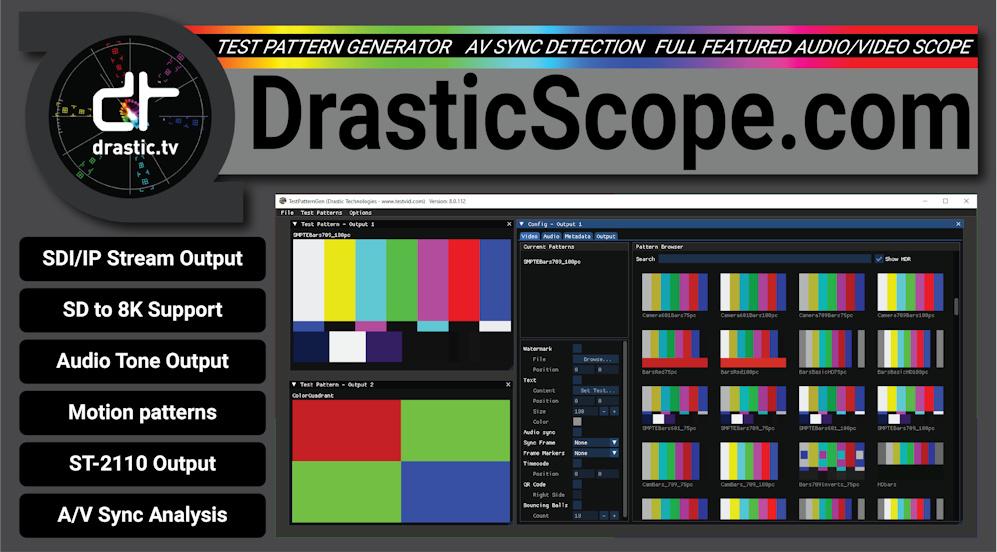

Drastic's new software Test Pattern Generator sends high quality test patterns out via hardware, IP stream, or to a desktop.
Features and Options
Test Pattern Generator Feature Set:
- Support for AJA, Bluefish444, Blackmagic, Matrox hardware
- 601, 709, BT-2020, HDR/WCG workflows
- Hundreds of available patterns
Options:
- A/V Sync option with A/V Sync Motion Patterns/Tones/Sync Frame/QR code
- ST-2110 output option
- IP Stream UDP/RTP/SRT/RIST output option
- VVQ Visual Video Quality option with Motion Patterns
Integrate with HDRScope for End to End A/V Sync Analysis
- Limited Time Offer! Test Pattern Generator ($250.00 US retail) + A/V Sync Option ($250.00 US retail) + HDRScope ($895.00 US retail) for $1,000.00 US.
- A savings of $395.00 US over retail
- Annual Support package available for 15% of retail per year
- HDRScope's A/V Sync scope monitors and displays audio video timing discrepancies
- QR code per-second update on timing details, good/bad indicators, in-transit/offset details
- Super-accurate PTP timing or use System clock
- Supports Black/white frame, Change, iPhone, BBC Seq 1/2, EBU 3305 Seq 1/2, Hitomi iPhone/Matchbox, Lynx Testor AV, PhotoJoseph, Sarnoff Visualizer, Sync-It, Tektronix, Twitch, Valid, VAL check, and VB440 patterns as well
- HDRScope adds a wealth of waveform/vectorscope tools in addition to the A/V Sync scope
Special Offer Test Pattern Generator Bundle with HDRScope for a Complete A/V Sync Solution
| |
 |
HDRScope can use Test Pattern Generator's EBU A/V Sync motion patterns to monitor the timing relationship between the audio and video in your content. The scope will display details about any lag between the two, as well as time in flight.
HDRScope can also use A/V Sync patterns from other manufacturers, like Lynx, Tektronix, and Hitomi.
|
| |
 |

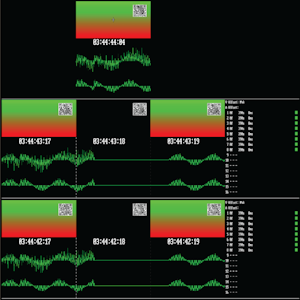

HDRScope views the current signal and keeps details about the Sync Frame, which is where the screen flash occurs. A snapshot is taken every second, synchronized to the flash and the audio tone (or silence). The prior two flashes are displayed beneath the current signal.
To the right of the prior two flashes are details about the video and audio, including time in transit, any offset, and audio lag in frames, milliseconds, and samples. A green/yellow/red set of indicators allows at-a-glance confirmation of status, where green = good, yellow = some delay, and red = bad.
|
Download the Software and See for Yourself
To see the software in action, go immediately to the product page and download a demo.
Running the software should provide an automated option to request a trial license. Go to Testvid.com to use our test patterns in your workflow.
While you're at it, make sure to try a demo of HDRScope at the same time. www.hdrscope.com
 |
We will be at the IBC 2025 Show, demonstrating our A/V Sync Analysis end to end testing bundle, our exclusive MediaReactor S3/TAMS access plugin, and promoting the adantages of Drastic's enterprise level Multichannel Ingest, Transcode, and Delivery Solution Net-X-Code Server. We will be set up in the eMAM booth, but will also take meetings as scheduled.
Slots are filling up fast, so please get in touch soon to make arrangements.
