DrasticScope Signal Analysis Software is a suite of software products for signal analysis. There is a free version, great for training and signal validation purposes, including low budget and no budget video workflows. There are also paid versions available for more fully featured workflows, including SDI/HDMI analysis, HDR/WCG workflows, and ST-2110/IP stream analysis.
We have recently added a number of professional scopes to the suite that you would expect to see only on far more expensive hardware based signal analysis devices, such as the Channel Plot, YCbCr Vector, Composite/Luma Peak, and 6 Bar Gamut scopes.
Free Drastic Waveform/Vectorscope Software |
||
 |

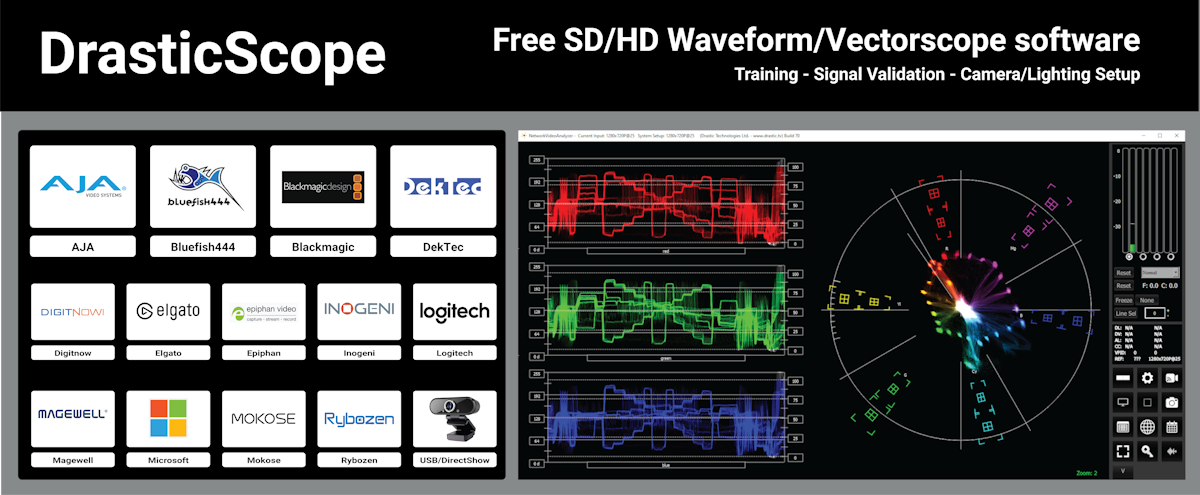

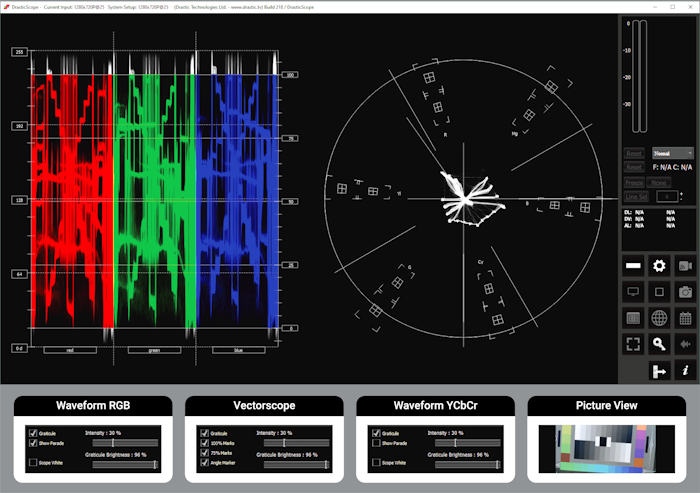

That's right, you can download Drastic's free waveform/vectorscope software and run it today! You can use the waveform for RGB or YCbCr signals, and the vectorscope with accurate primary graticules for 8 bit SD and HD. DrasticScope features a 2up layout, so you can use the picture next to one of the scopes and watch your signal as it is analyzed in the scope. There are two audio channels with dBFS RMS levels shown in on-GUI meters. DrasticScope supports AJA, Bluefish444, and Blackmagic hardware, as well as a number of USB/DirectShow devices for economical content creation workflows. The free version is ideal for low budget workflows, and training for video technicians. DrasticScope is free to download and run. It has an auto shut off, but this can be disabled with a simple sign in (name/email). Take me right to the Free Download |
|
Once you have had a chance to run the Free version for a while, you may be interested to see if our paid versions add any features you could really use. You can always check out a demo by going to the product page and clicking the download tab.
More Powerful versions of Drastic Waveform/Vectorscope Software |
||
 |
Drastic's sdiScope software is a great, inexpensive add on to your ingest or playout system. It provides an 8/10 bit SD/HD signal analysis application with our basic set of waveforms, vectorscope, and histograms. It supports up to 8 audio channels, with more graticules on the scopes, a status display, and luma/red/blue/green only and focus assist display modes. sdiScope provides image and frame capture, and adds YCbCr, RGB, HSV, and Luma histograms. sdiScope is available for $149.00 US Annual support can be purchased for 15% of the retail price, per year. |
|
 |
4KScope adds most of the features that were formerly only available in a hardware based scope, and provides specific digital video features the analog devices never had. 4KScope adds support for closed caption detection and display, YCbCr Vector, Channel Plot, Composite Peak, Luma Peak, 6 Bar Gamut scopes, 8 different types of audio scopes including surround sound and loudness monitoring, ANC data display, up to 4K standard, and up/down convert. Drastic's exclusive H/S Scope is a time saving camera and lighting calibration tool, and our ScopeDirect plugins provide a direct connection to Adobe, Avid, Blackmagic, Assimilate, and OpenFX editors. A baker's dozen of display modes are also added at this level. 4KScope is available for $495.00 US Annual support can be purchased for 15% of the retail price, per year. |
|
 |
HDRScope is designed specifically for high dynamic range and wide color gamut workflows. It supports up to 8K video standards. HDRScope provides a MaxFALL/MaxCLL in-GUI display, and can set 1000 nits for HLG and up to 10,000 nits for HDR10 workflows. HDRscope is available for $895.00 US Annual support can be purchased for 15% of the retail price, per year. |
|
 |
2110Scope provides all the features of the other scopes, and additionally can analyze ST2110 streams as well as SRT, RTP, UDP, and RIST streams. 2110Scope is available for $1,995.00 US Annual support can be purchased for 15% of the retail price, per year. |
|
Download the Free version now |
||
|
Click the link on the lower right there and get started right away with an install of DrasticScope. Immediately you can view your SDI or UVC/DirectShow signals, and view the levels through the included waveforms and vectorscopes. Download Link |
|
