2110Scope

NetXScope

ST-2110 and IP Stream Waveform Vectorscope Tools

NetXScope software provides a real time, professional quality signal analysis tool for on set, production, post production, and research and development environments. NetXScope is designed to monitor IP streams, as well as baseband video signals and TR-01. It supports SDR and HDR image analysis in 601, 709, 2020, HDR10 and WCG color spaces.

	Windows 7 or greater
	CentOS/Red Hat 7.4-7.8

Buy Now Download

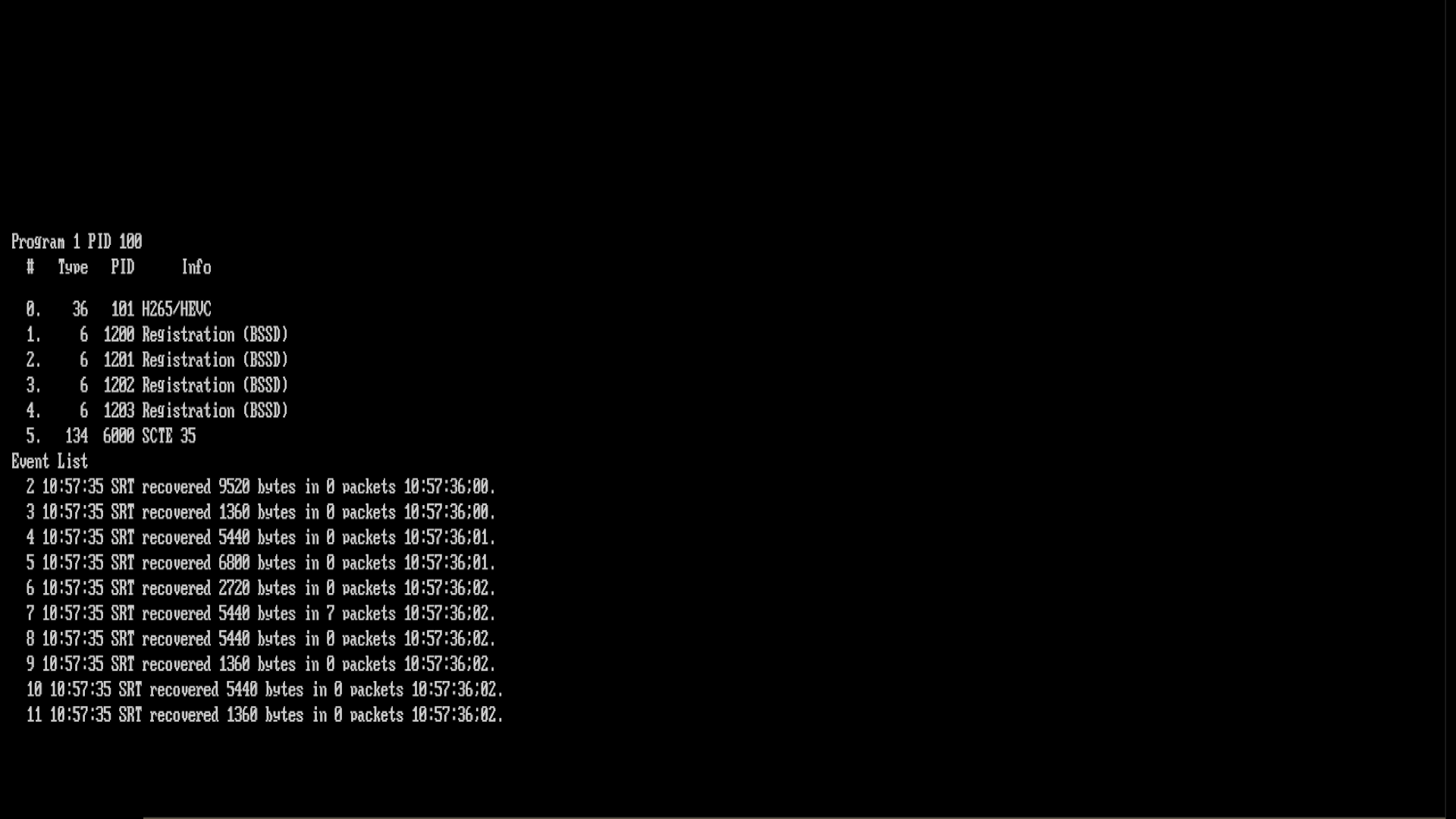

Monitor and Analyze the ST-2110, RTP, UDP, SRT, and RIST IP streams coming into your facility. Analysis instruments include a full suite of audio and video waveform/vectorscope displays, per pixel displays, error event logging, display modes and more, with support for everything from SD/HD up to 8K standards.

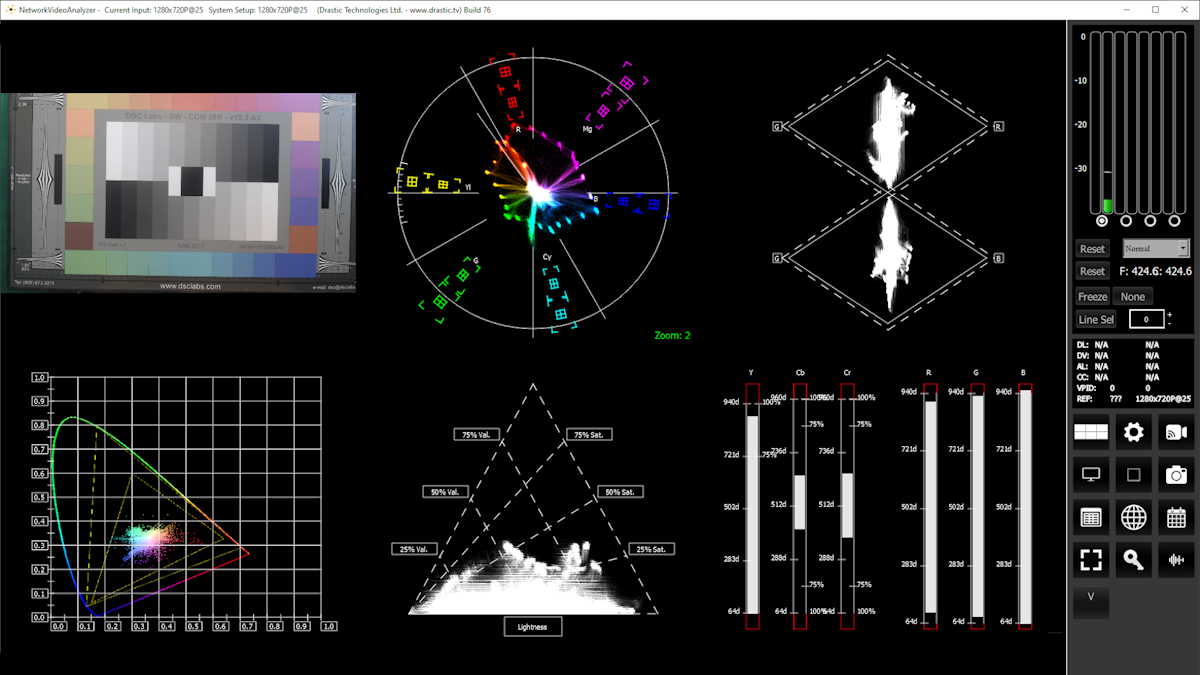

2110 6upview

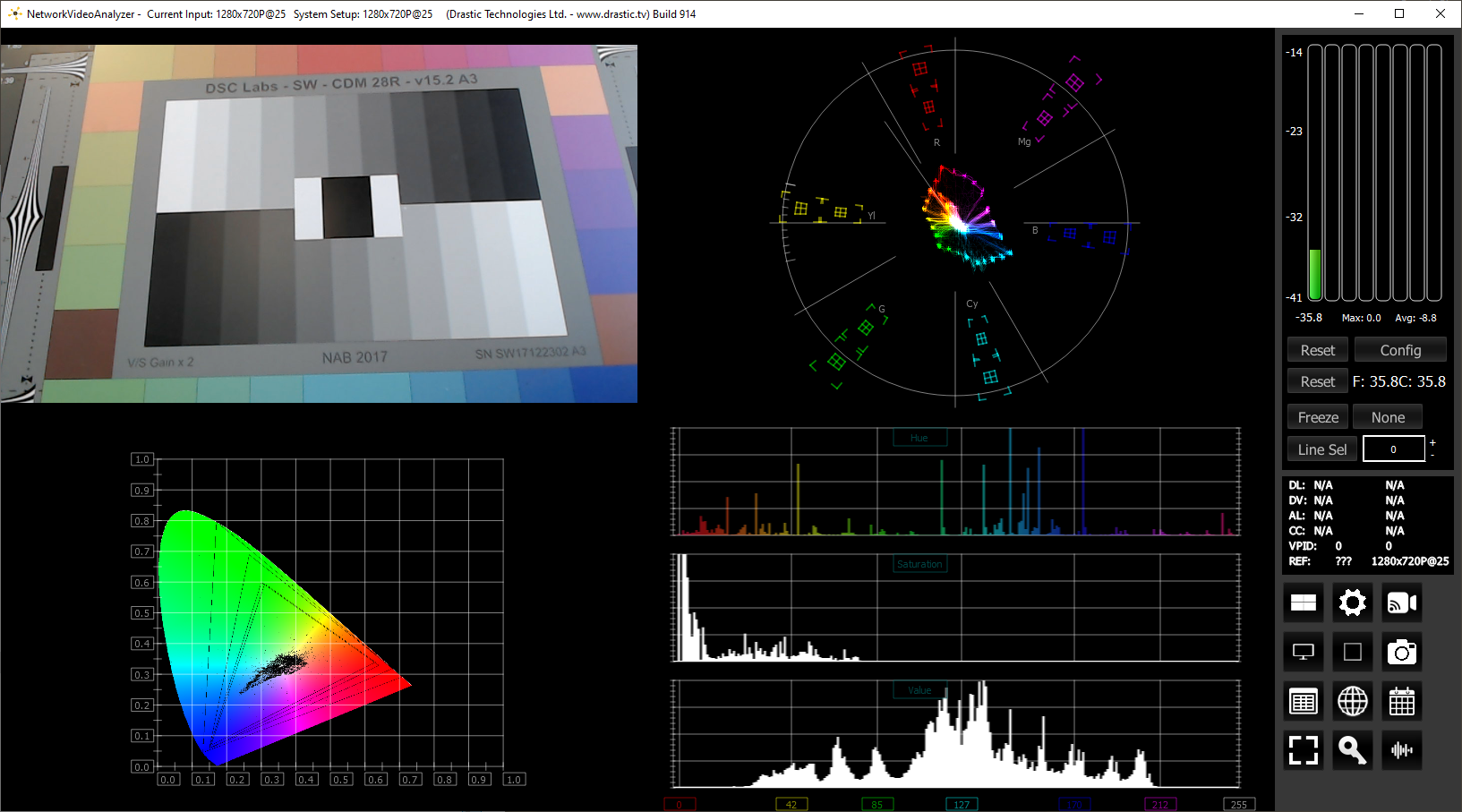

NetXScope can display up to six video, data, or audio scopes at one time with pixel accurate 16 bit precision in SDR or HDR. NetXScope is ideal for ST-2110/2022 mastering, DIT and broadcast monitoring, signal QC and remote monitoring. It is available as software for Windows 64, or CentOS/Red Hat, or a 1U hardware device from our partner, CineSys.io.

Video Scopes

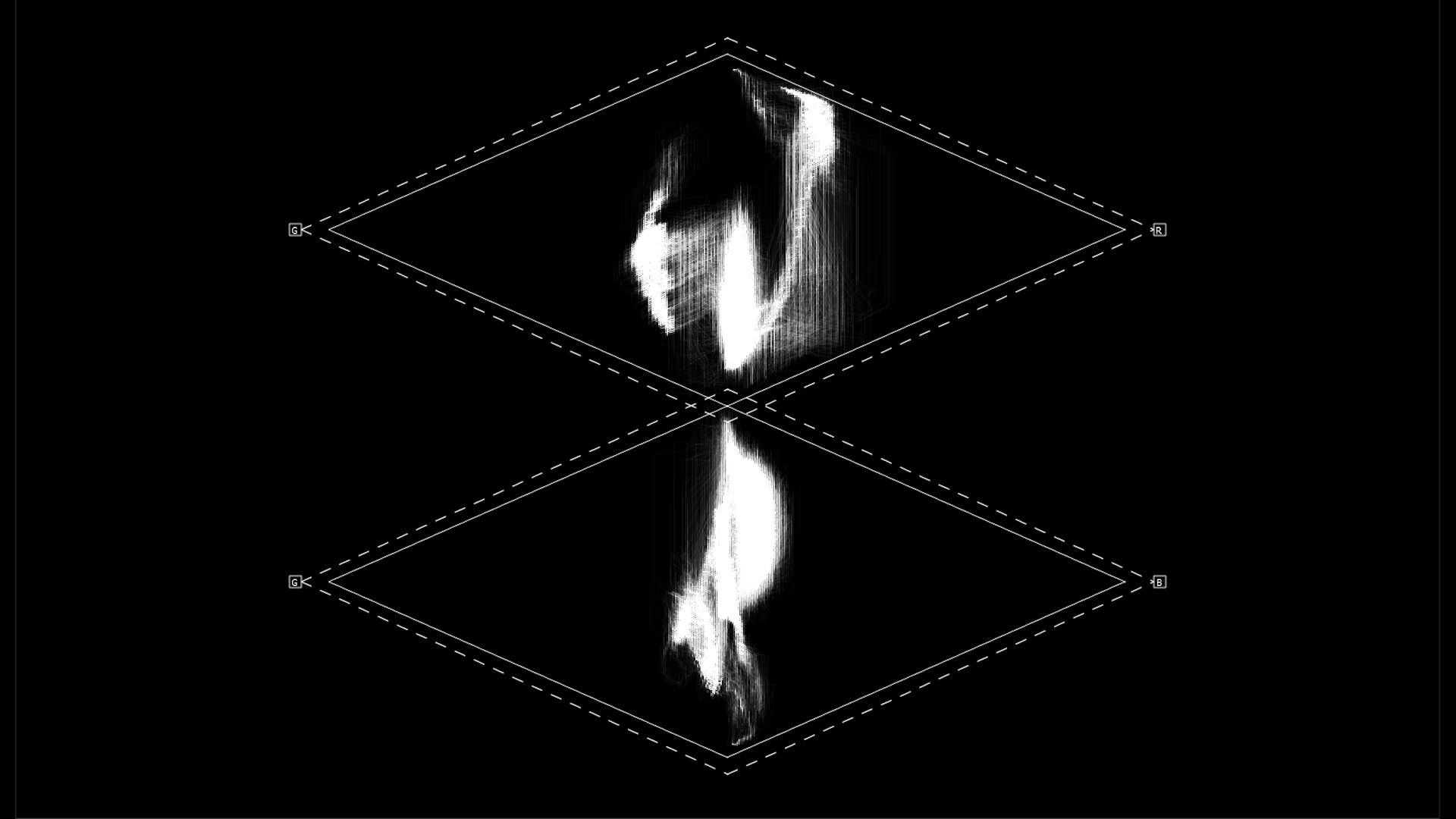

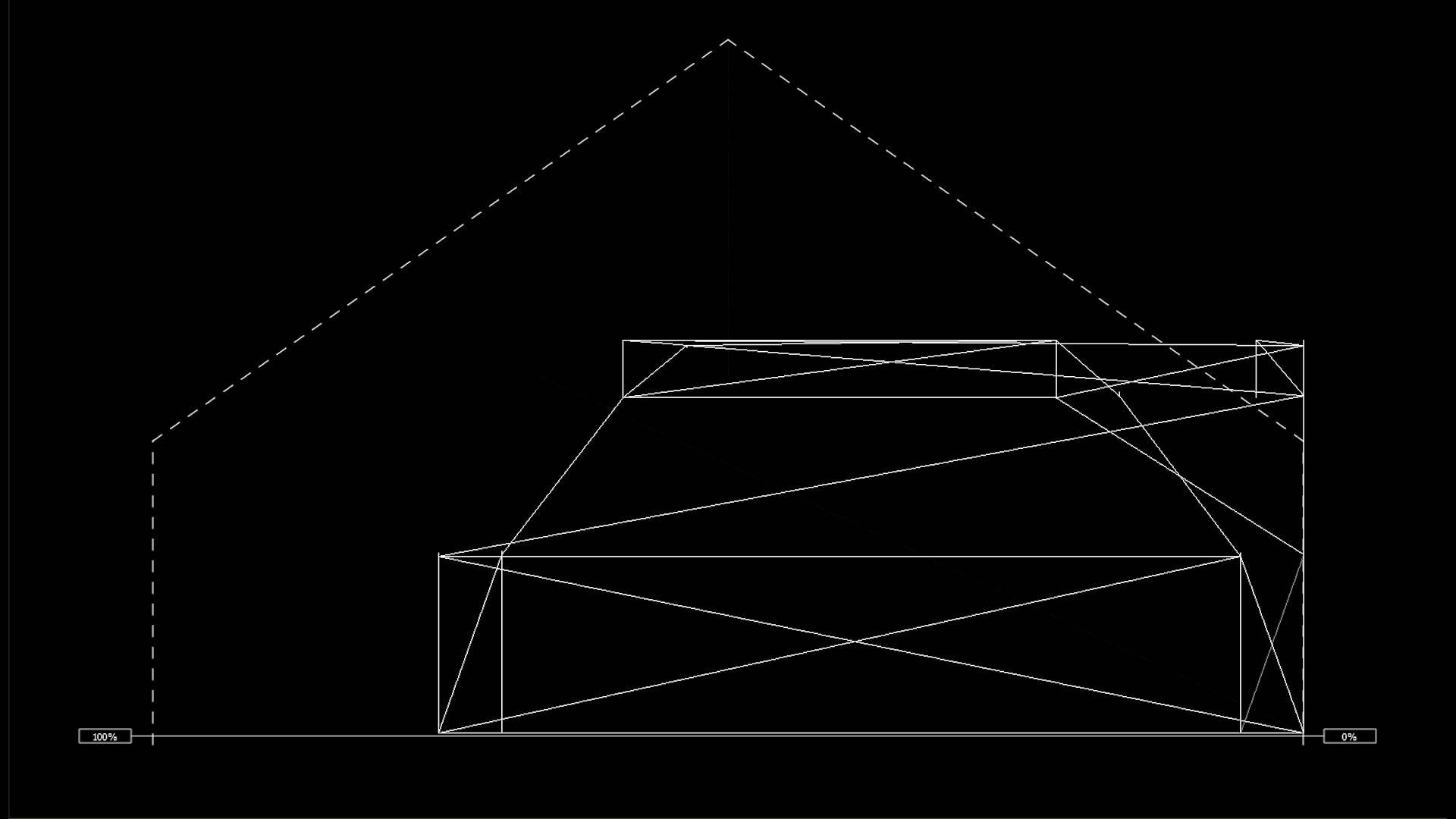

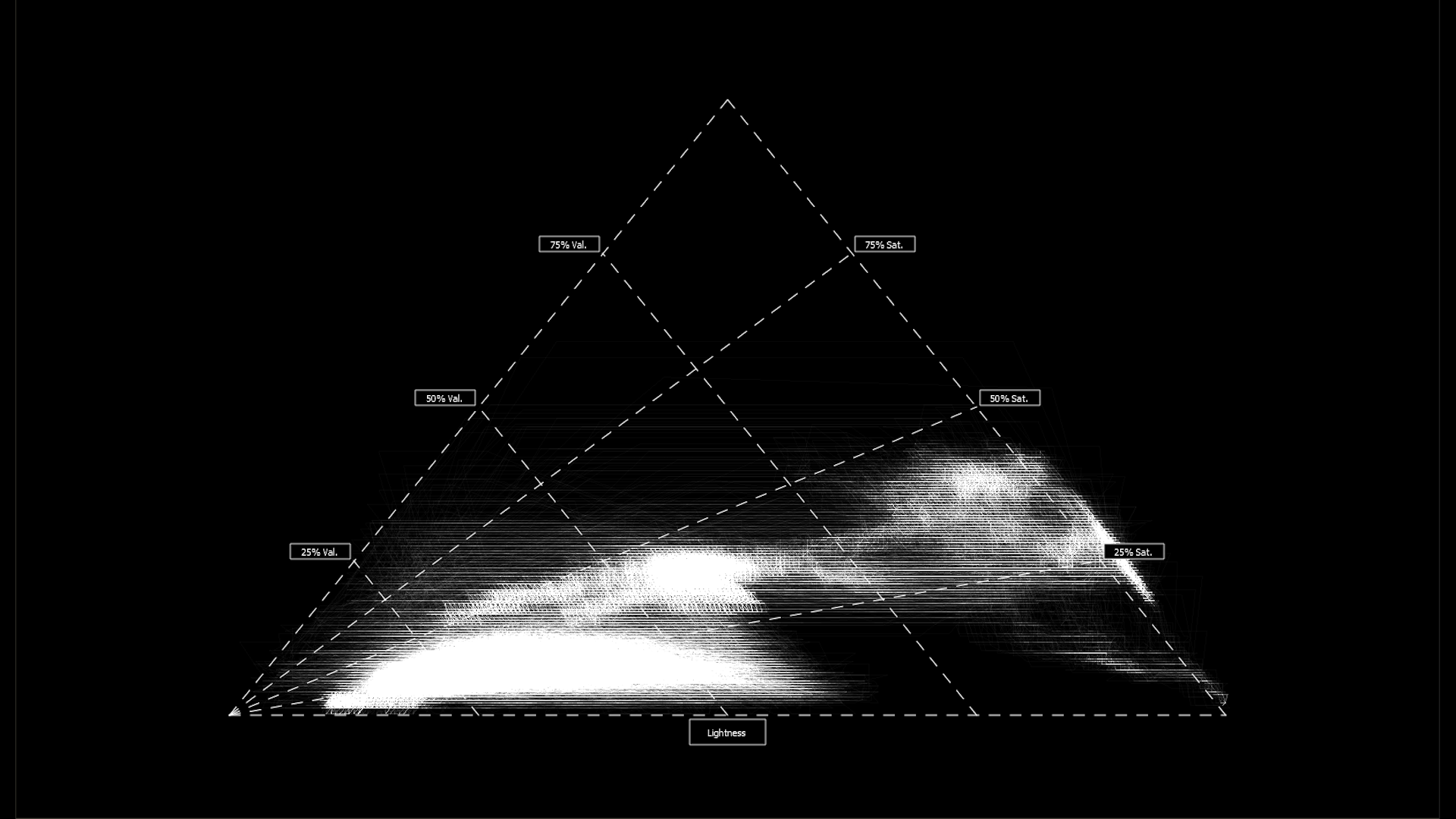

IP Timing, Vectorscope (with WCG support), Waveform Luma, Waveform RGB, Waveform YCbCr (with HDR10 support), Histogram RGB, Histogram Luma, Chromaticity, Status

Learn more

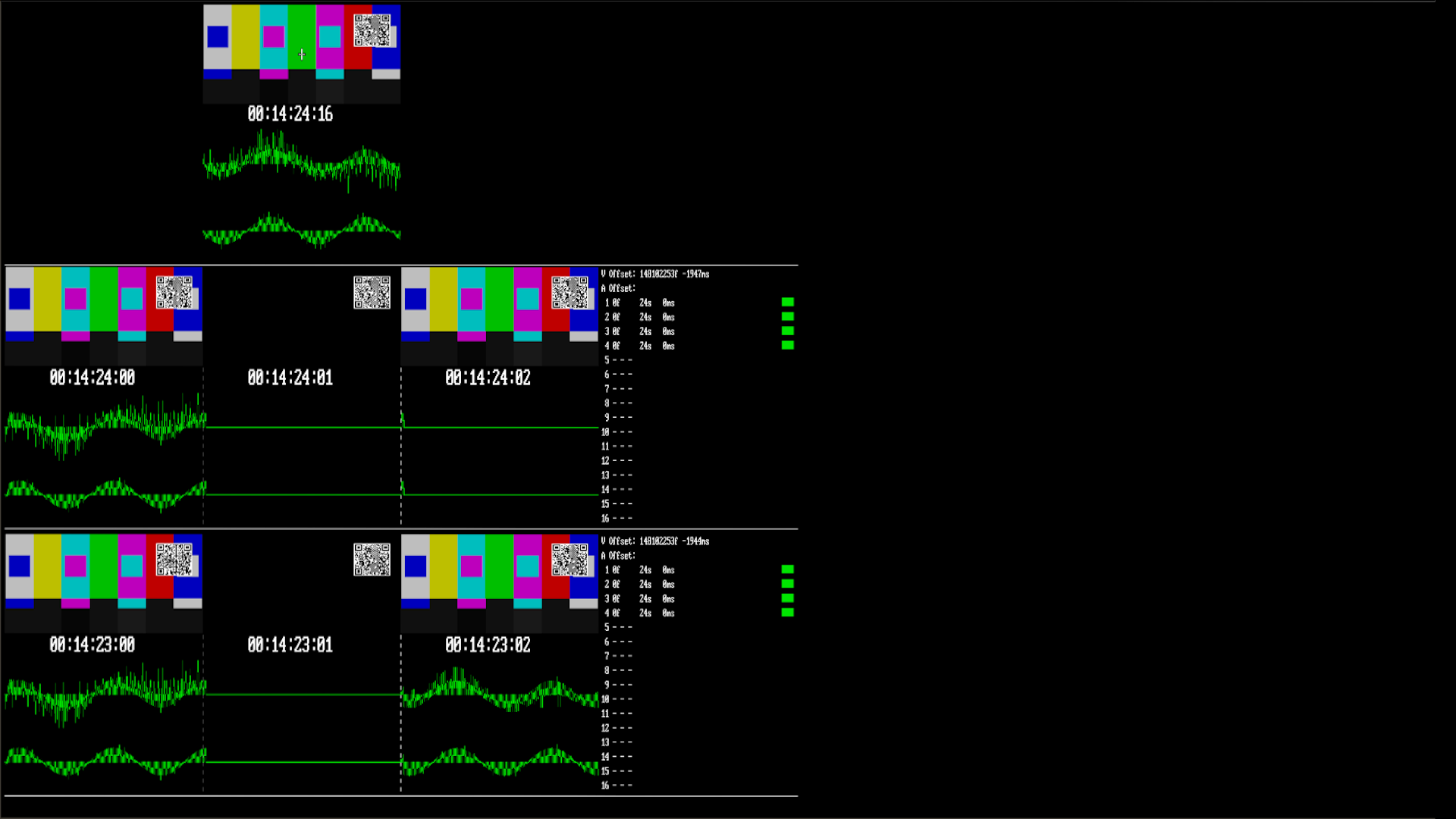

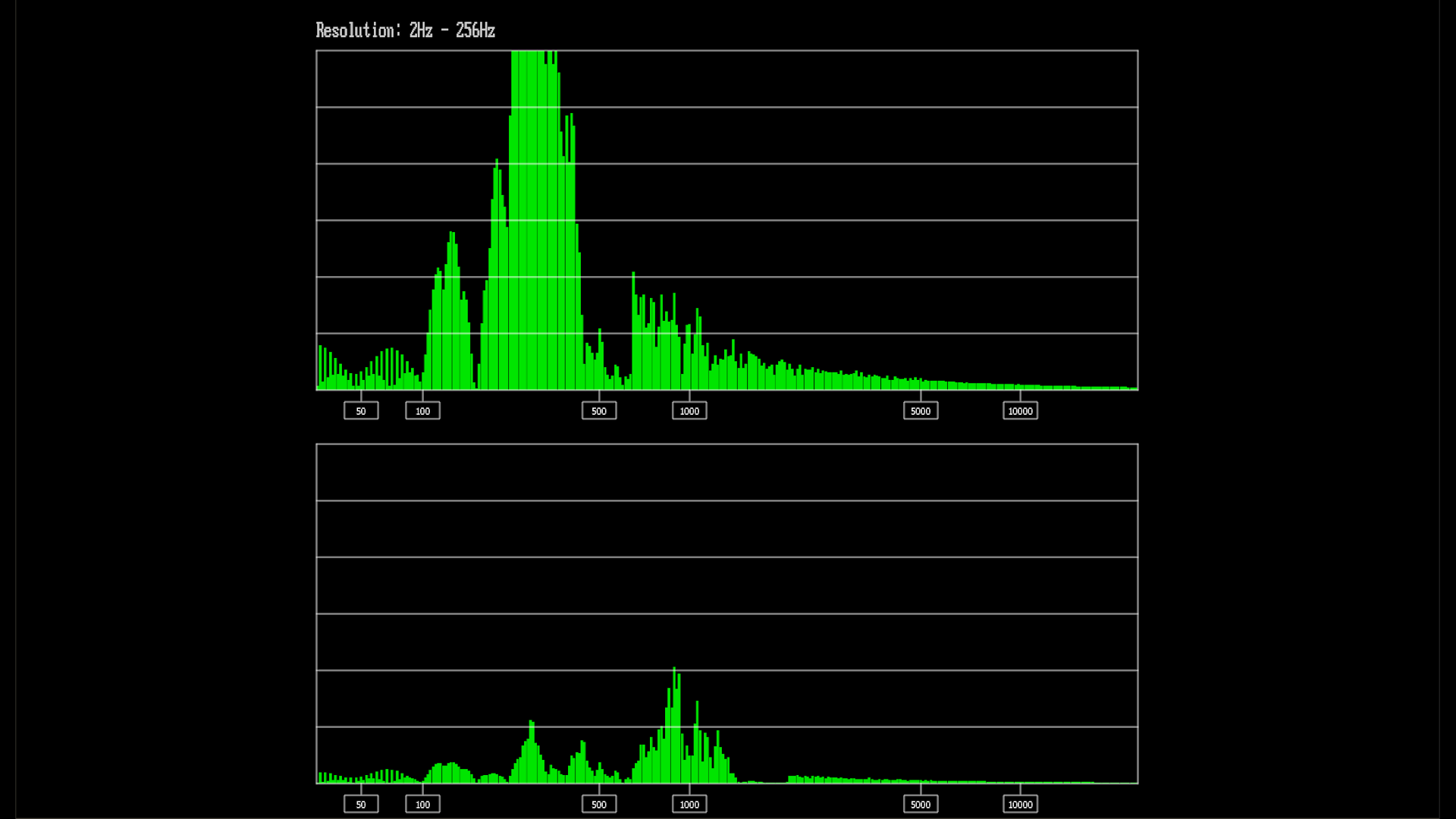

Audio Scopes

Audio Vectorscope, Audio Waveform, Audio Histogram, Audio Phase, Audio Meters in RMS or Loudness

Learn more

Picture Modes

Red only, Green only, Blue only, Luma only, Zebra luma, Zebra chroma, Clipping, Edge difference, Focus assist, Flip/flop, False color, Opacity, Luma key, Greenscreen/chroma key.

Learn more

Advanced Features

WebSix_PicVectorChromaticityWaveLumaWaveRGB

Closed caption display (608, 708, OP-47), error logging, 8/10/12 bit processes as 16 bit, HTML5/Web remote access, zoom and pan, user markers, signal compare, frame capture and more.

Learn more

Main Use Cases

SMPTE 2110 monitoring and validating
RTP, SRT, UDP, and RIST network IP stream monitoring, live production
Broadcast monitoring
Remote network monitoring
Direct connection to Adobe, Avid, Resolve editors
Post production
Signal QC and network QC

Download

Technical Specifications

Video Inputs: SMPTE 2110/2022-6 (SD, HD, UHD, 4K, SUHD, 8K SDI, analog with optional I/O board)
Audio Inputs: Up to 16 channels of 24 bit embedded (AES/EBU or analog with optional IO board)
Display: HD to 8K SDR or HDR/HLG display (with app dimming)
Format Support: SD, HD (i/p/sf), UHD, 4K, SUHD, 8K up to 60p single/dual/quad/2si
Processing: 8, 10, 8K/SUHD, 12 bit input with 16 bit processing 4K or smaller, up to 32 lines of vertical blank

Learn More

If you aren't using ST-2110

Optional Upgrades

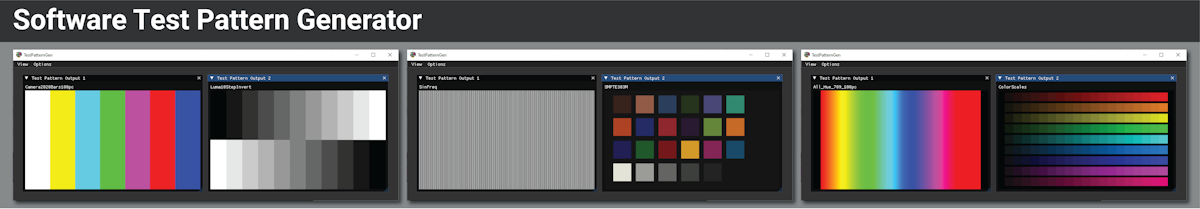

Drastic's software based Test Pattern Generator provides a wide range of test patterns for setup, testing, and calibration.

pattern Strip

Test Pattern Generator

For File Based Workflows

videoQC
- Media Player
- File based QC tool
- A set of Waveform/vectorscopes
- Single sided analysis
- Full reference analysis

Ancillary Data - Time code streams, closed caption, and other ancillary data associated with the signal are displayed in rows. Each data stream can be selected and its details will be reflected in the hex display below.

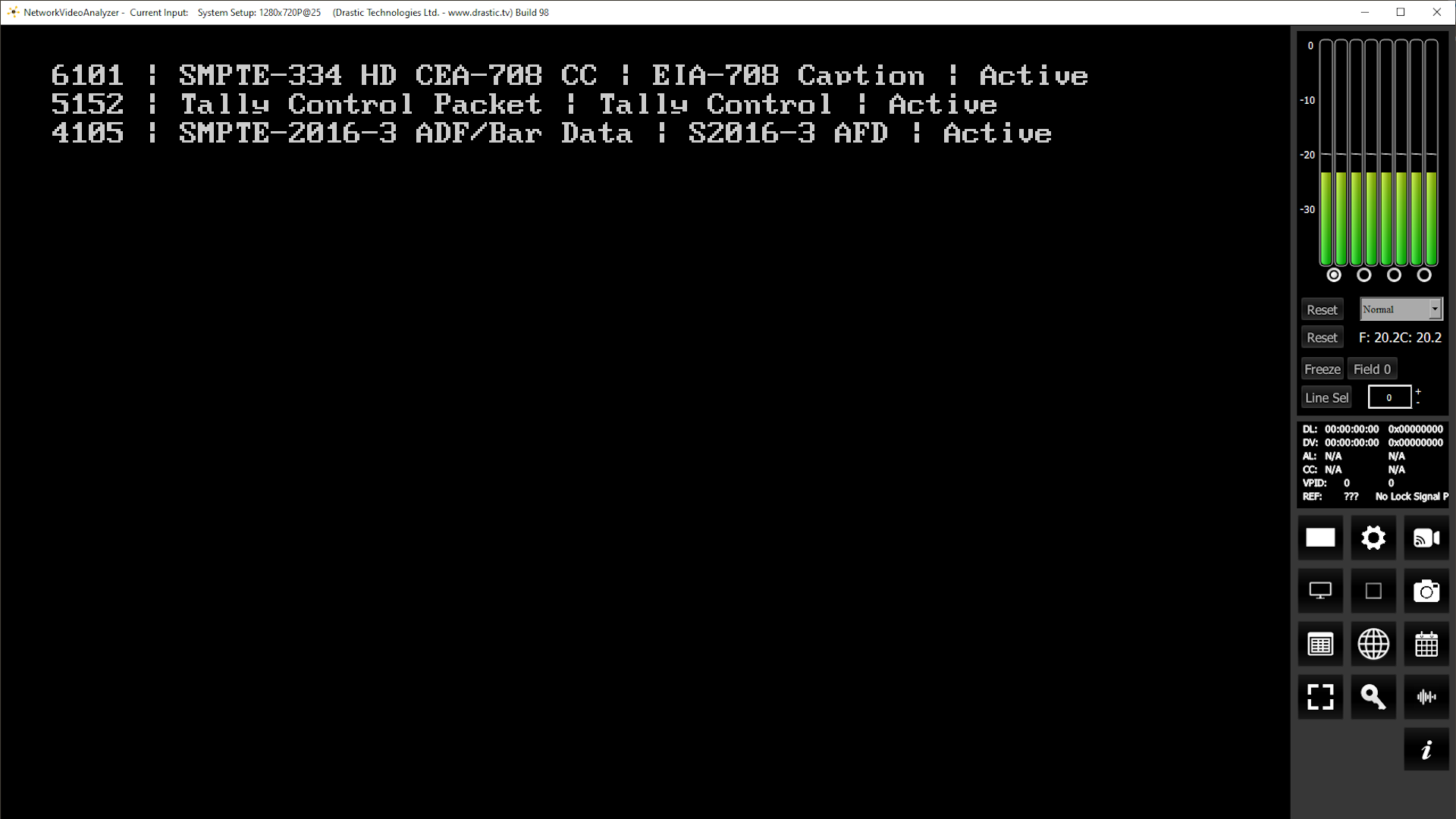

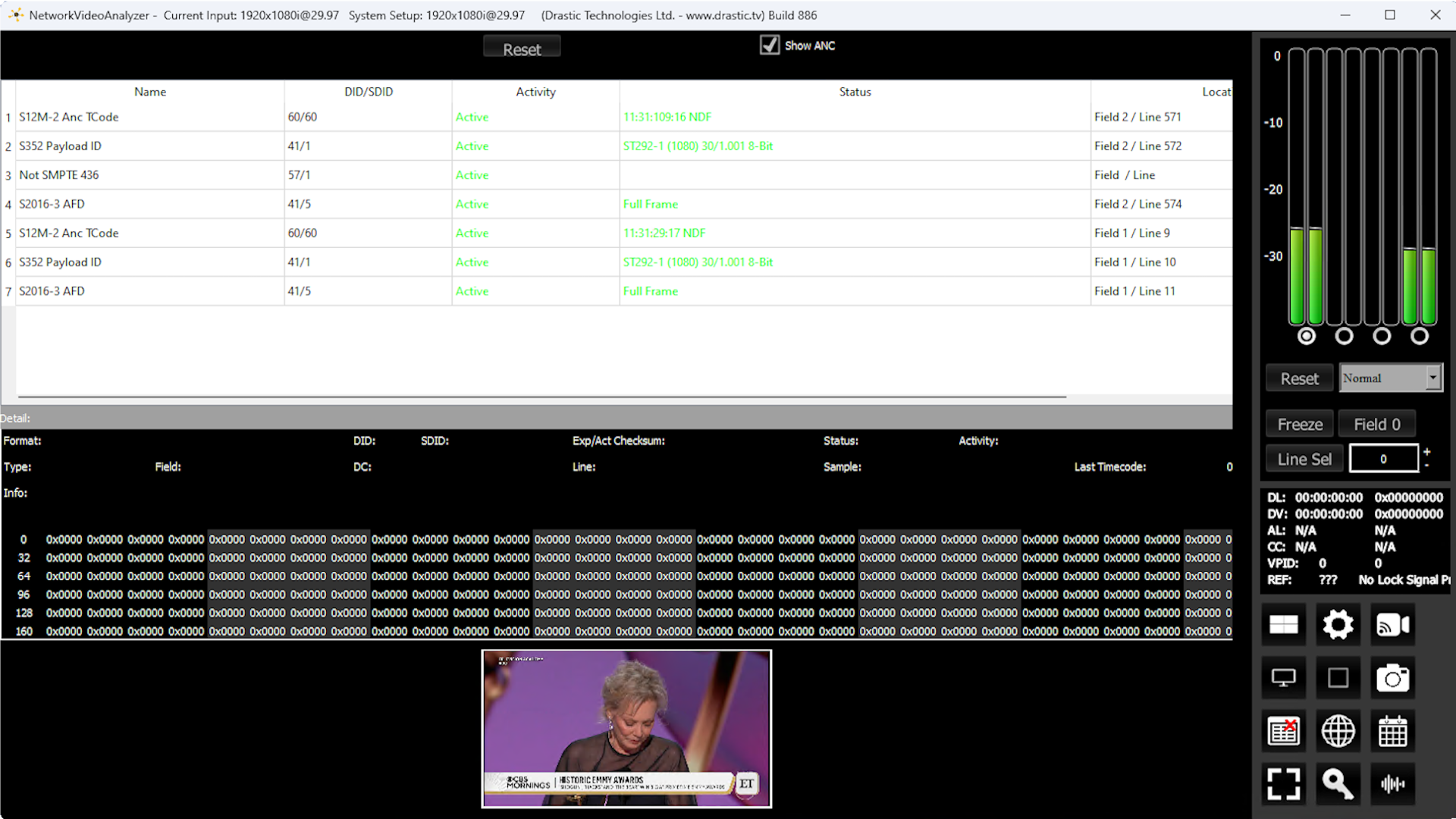

Ancillary Data Scope - Time code streams, closed caption, and other ancillary data associated with the signal are displayed in rows. This view provides a look at each of the data streams without closing the other scopes.

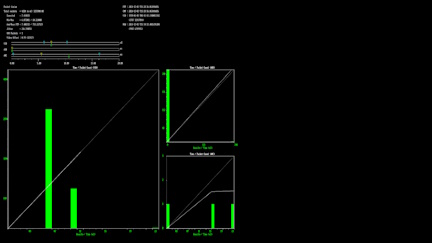

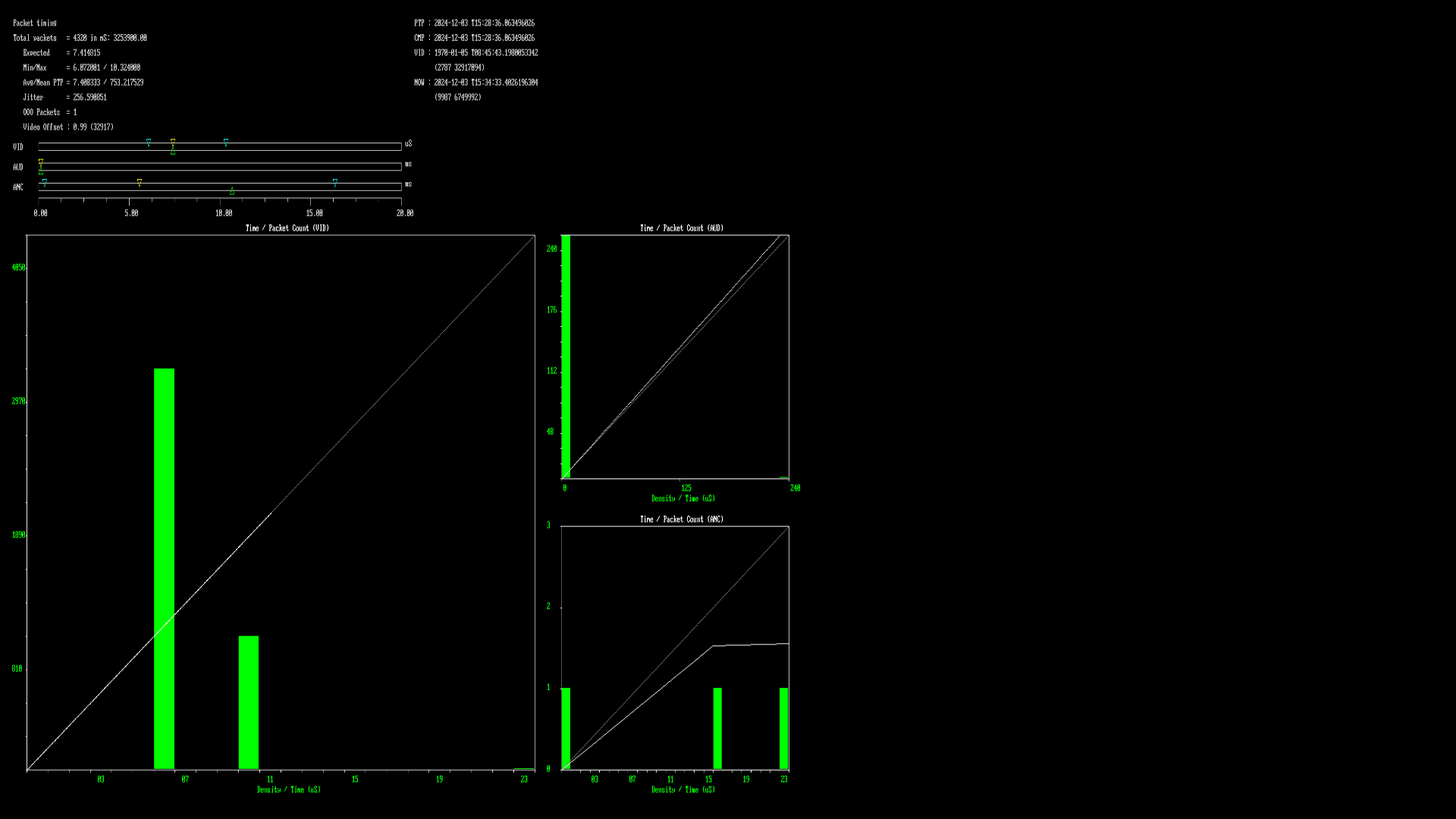

IP Timing - IP timing tracks the timing of the incoming SMPTE 2110 or 2022 packets on the network. The Min/Max/Avg/Mean of the distance between packets is calculated, as well as the expected value. Jitter and out of order packets are also tracked. A packet timing histogram is generated as well as a packet time vs ideal time line graph.

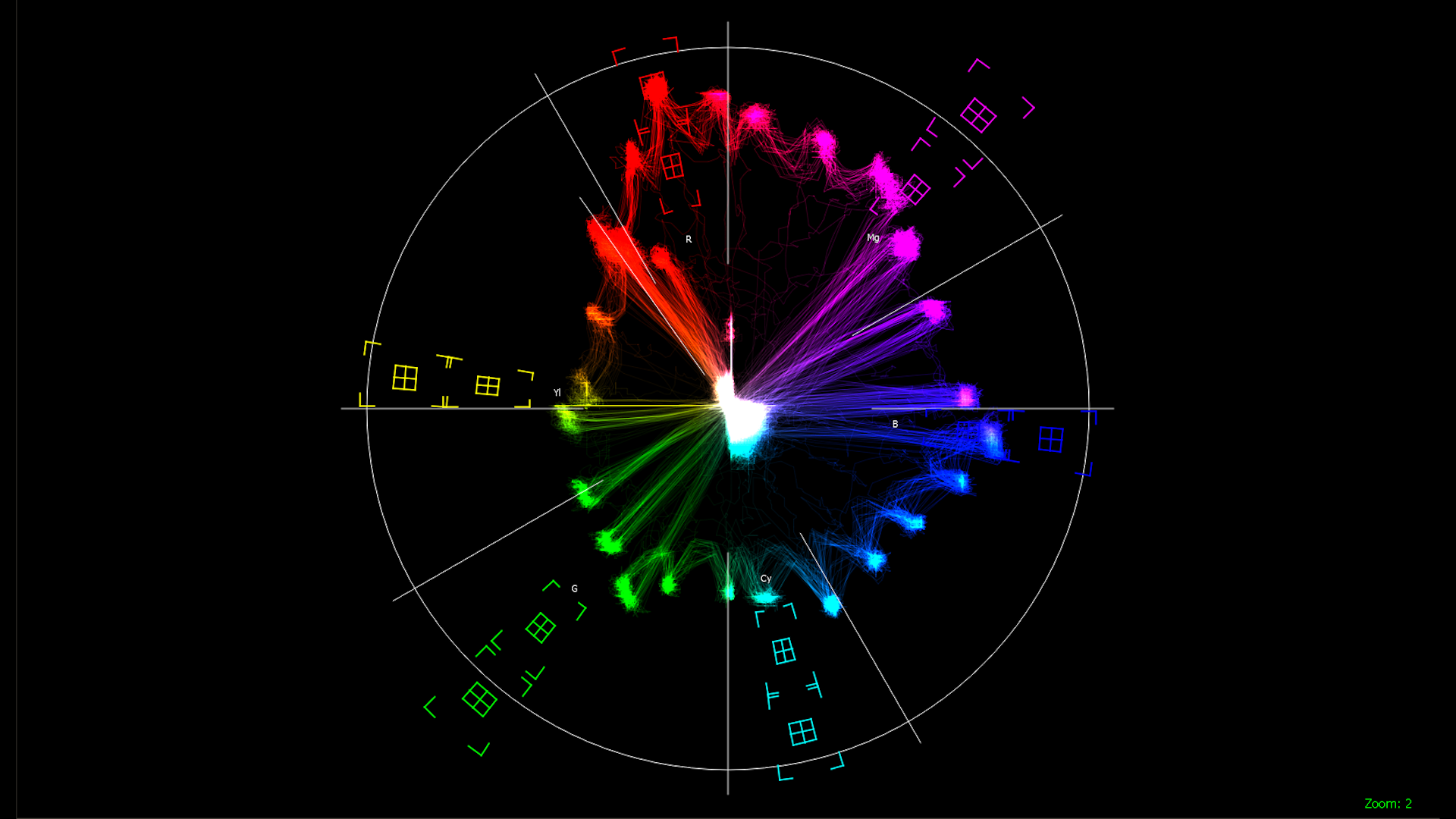

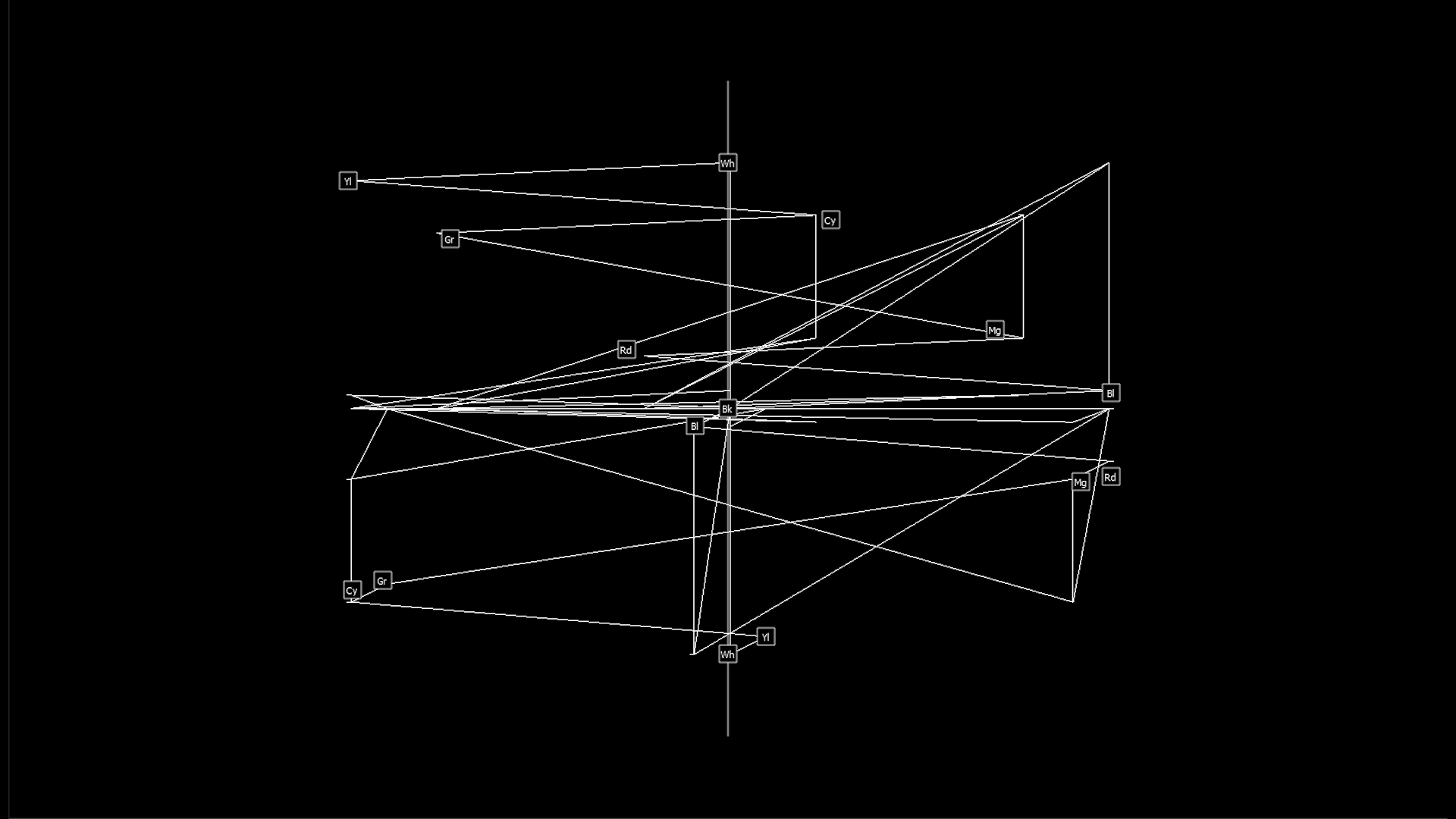

Vectorscope - Color accurate graticules automatically switch between SD (601), HD (709) and 4K/QHD (709 or 2020) color spaces. The markers include color points (for standard bar checks) at 75% and 100% saturation. All the standard points are boxed; red, magenta, blue, cyan, green and yellow. A skin tone/flesh line is provided to allow for easy hue adjustment as well as standard diagonals.

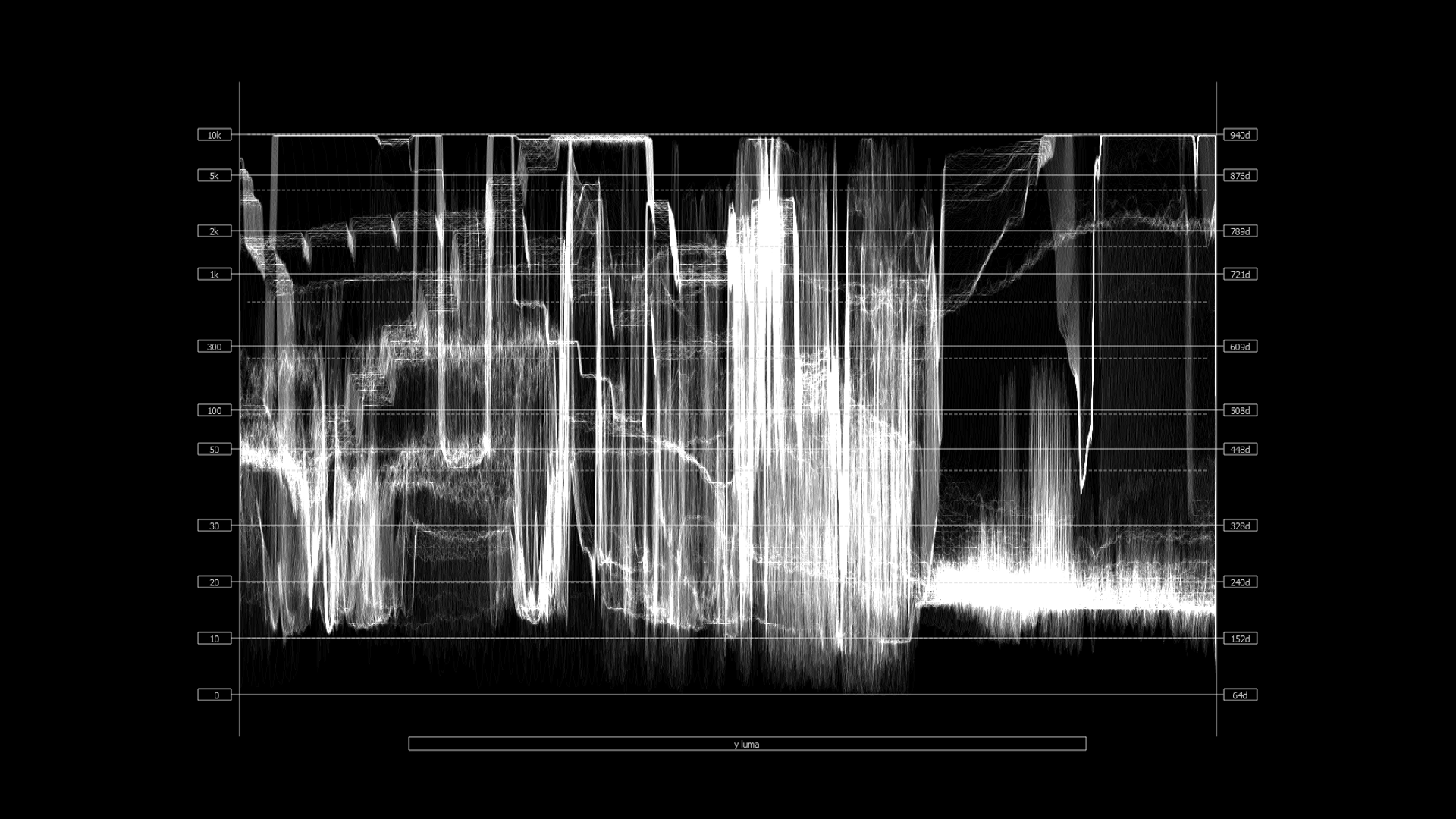

Waveform Luma/NIT Light Level - Displays the overall intensity of the picture. Standard 601/709 levels are supported, as well as NITs display for HDR/ST 2084 and HLG signals.

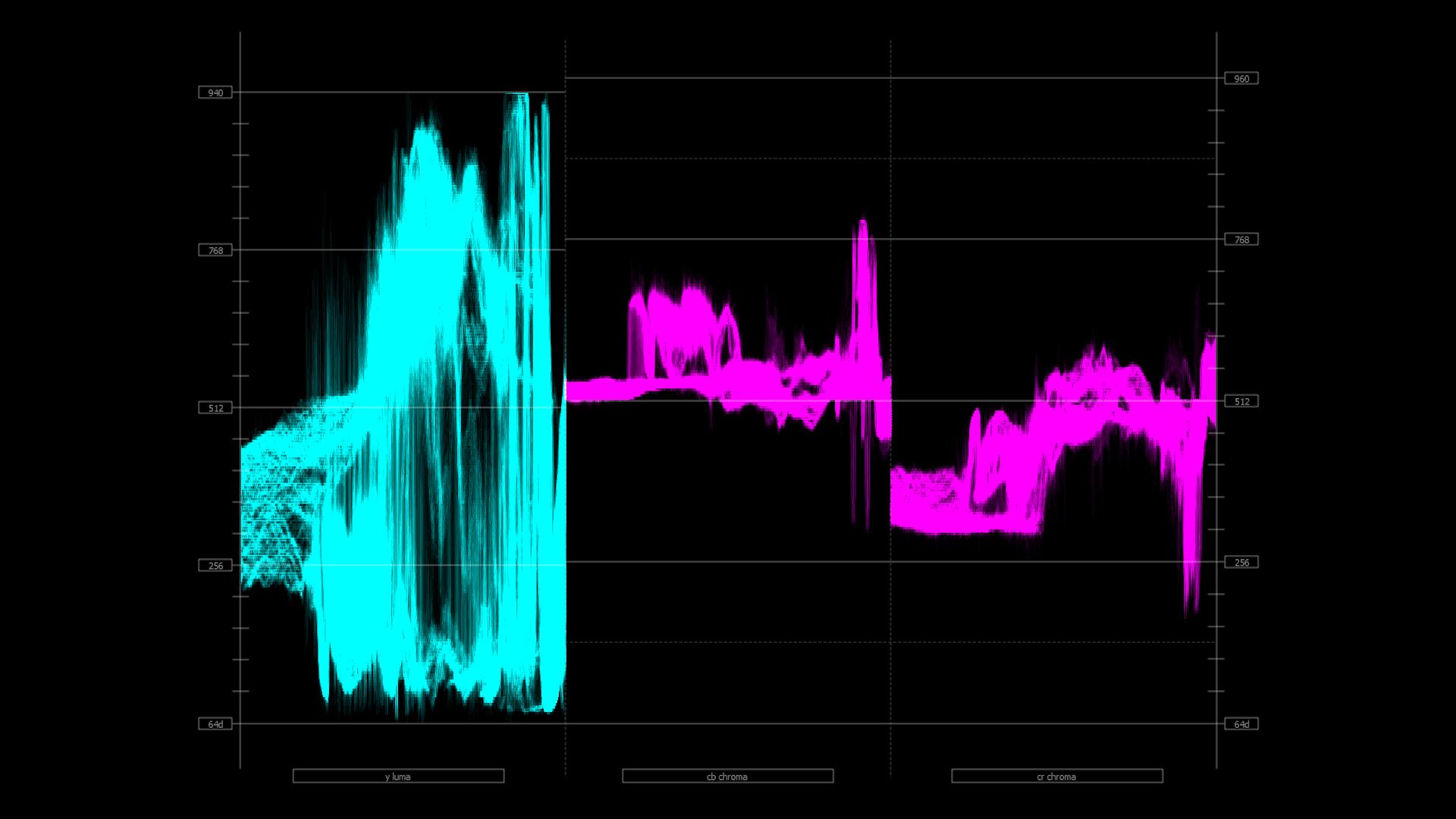

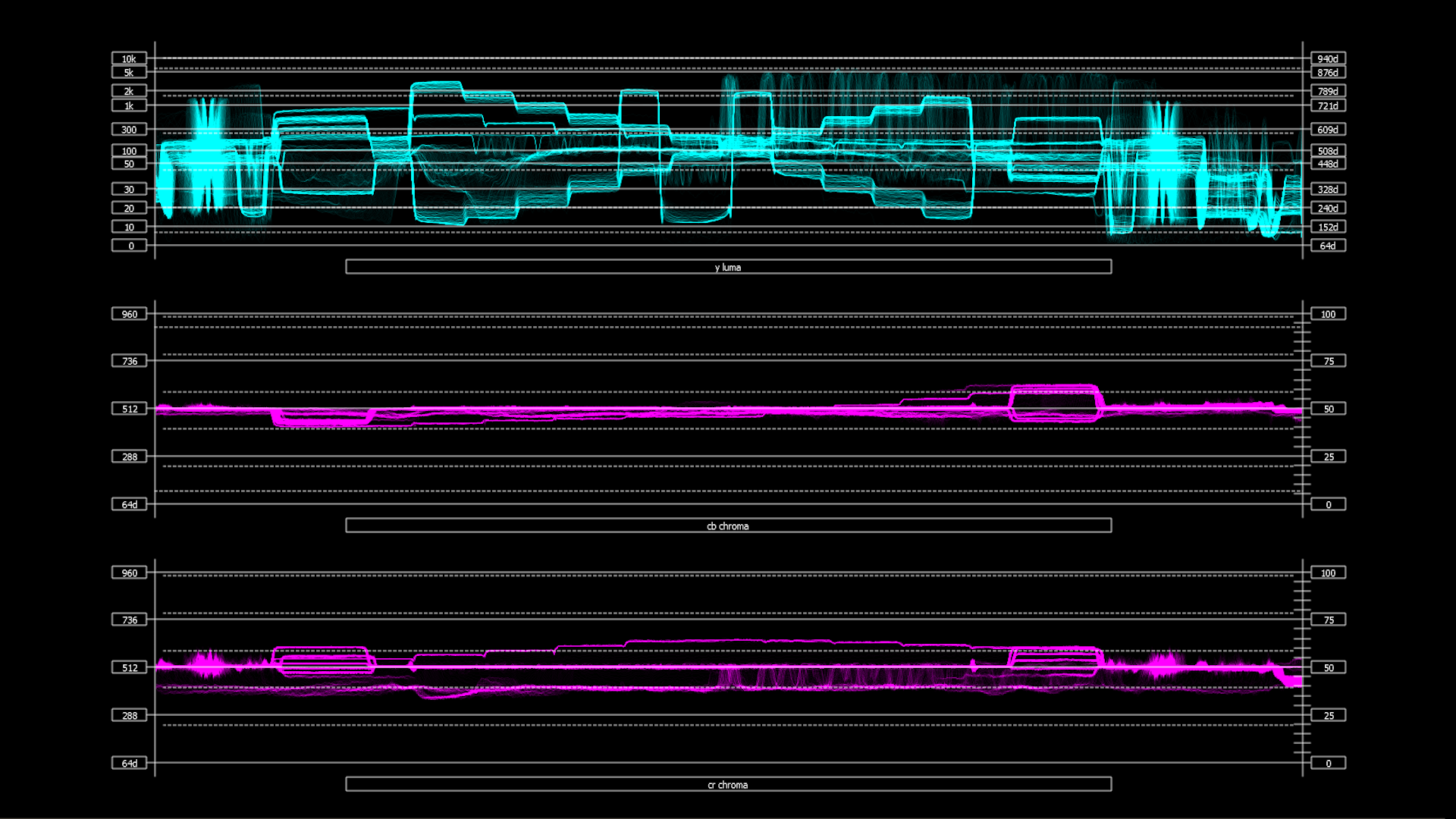

Waveform YCbCr Parade - Displays the levels of the Y, Cb and Cr from the left of the picture to the right of the picture with all the lines summed into one graph. The Y, or luma/luminance, graph provides accurate white and black level information, as well as the range in between.

Waveform YCbCr - Displays the levels of the Y, Cb and Cr from the left of the picture to the right of the picture with all the lines summed into one graph. The Y, or luma/luminance, graph provides accurate white and black level information, as well as the range in between. The luma waveform supports standard, HDR10 (Dolby Vision /ST.2084) and HLG (Hybrid Log Gamma) display up to 10,000 nits.

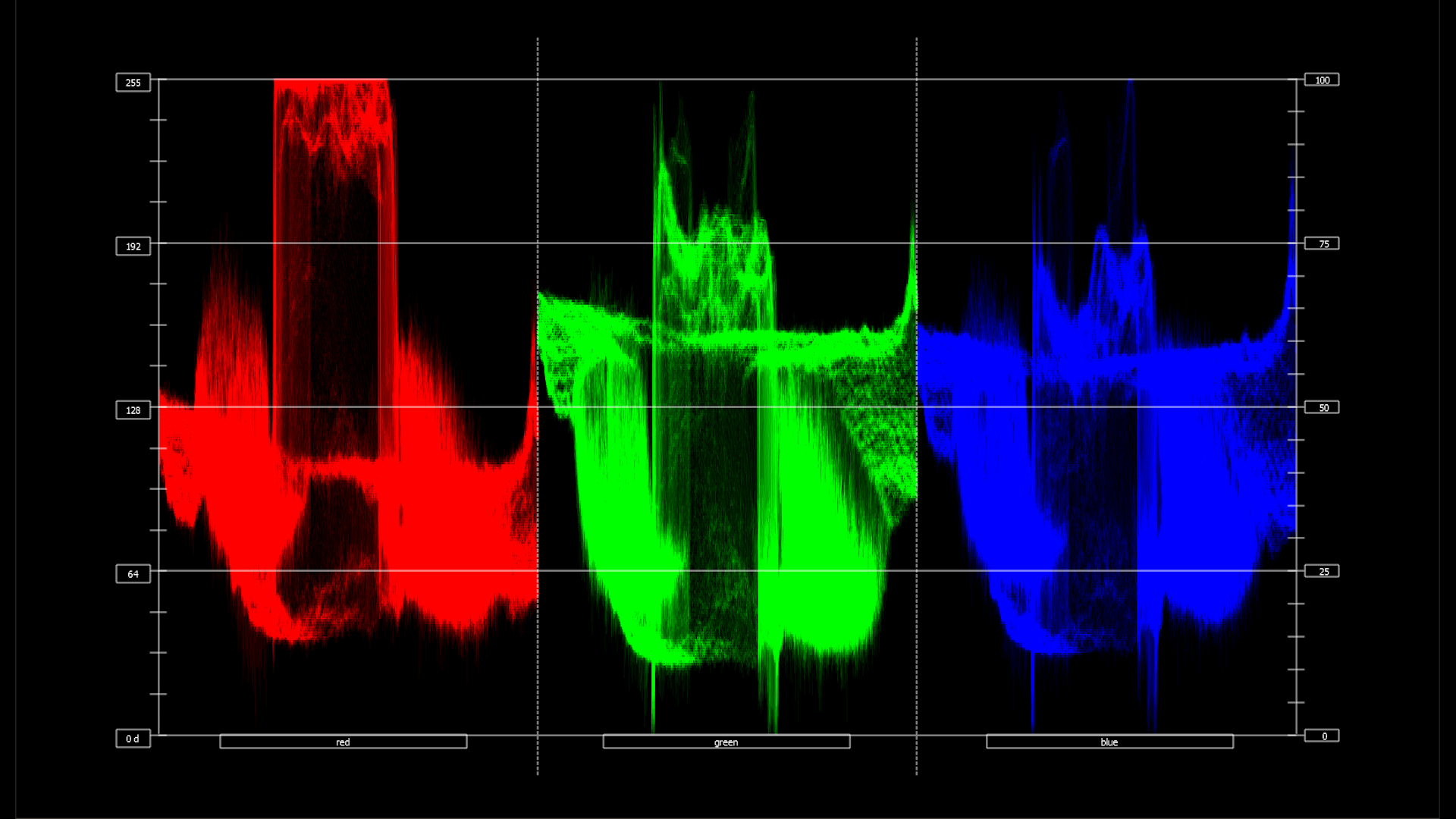

Waveform RGB Parade - The RGB Waveform Monitor shows each of the red, green and blue signals as independent graphs, displaying the RGB, or chrominance/color values associated with the signal. Above is the parade waveform, a stacked waveform is also available.

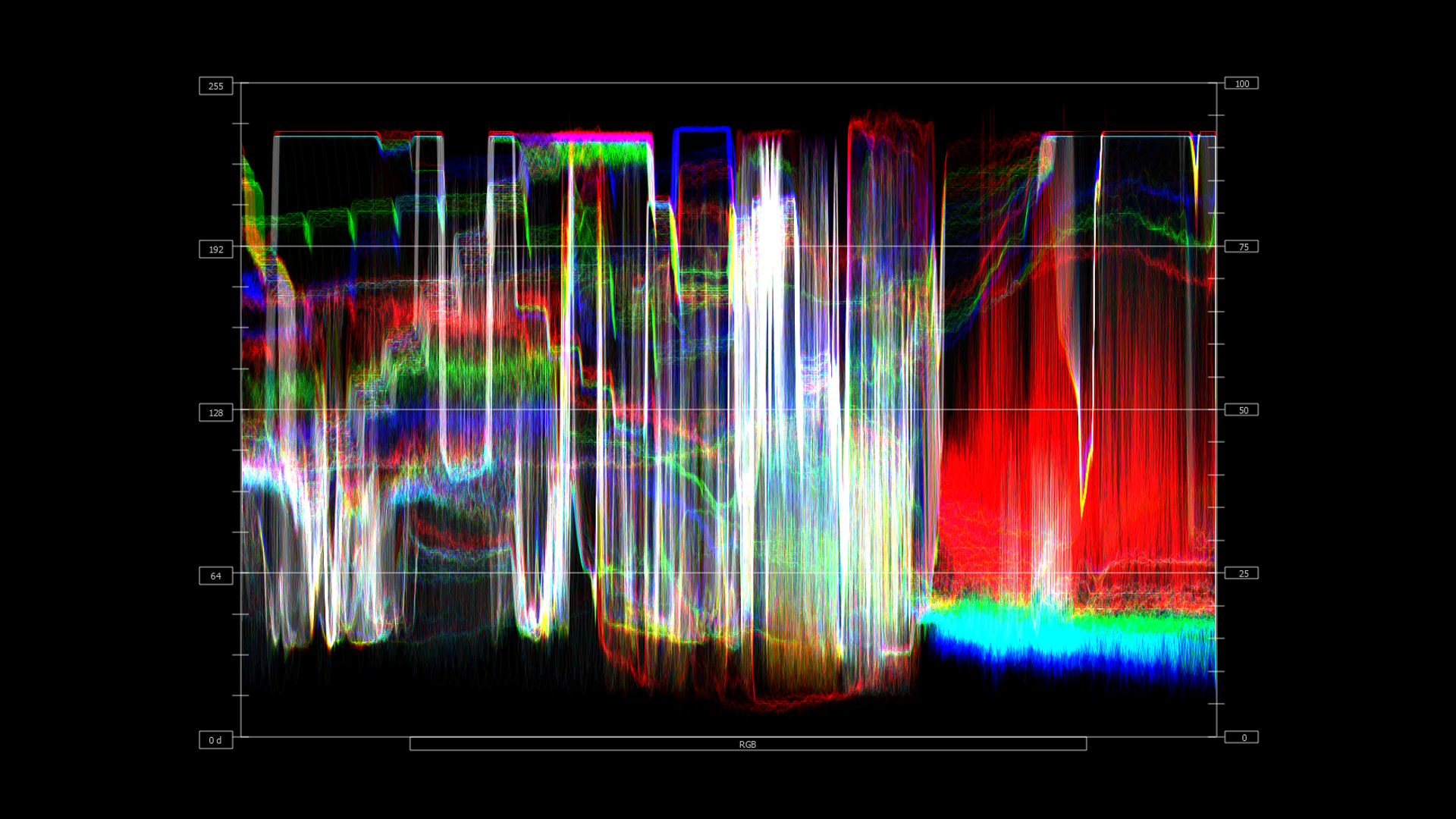

Waveform RGB Overlay - The RGB Waveform Overlay Monitor shows each of the red, green and blue signals on the same graphs, displaying the RGB values associated with the signal. This view makes color and white balancing simpler.

Waveform High/Low - The Waveform Monitor in high/low mode allows the colorist to focus just on the blacks and peaking levels in the signal. Traditional scopes can zoom into one or the other, but this view gives access to both at the same time.

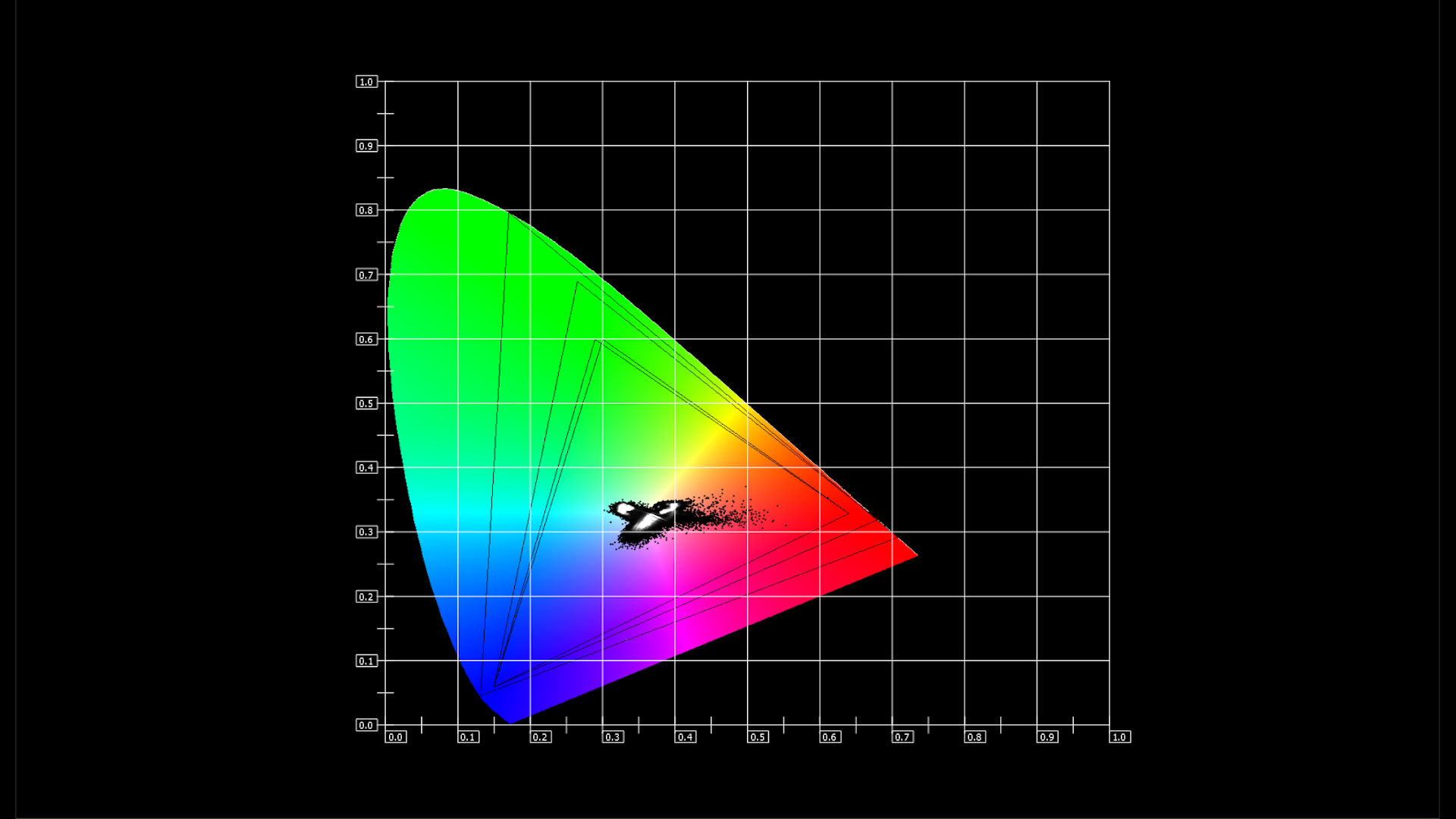

CIE XY Gamut - The CIE XY Gamut, or chromaticity, scope provides a visual representation of the color in a video across all the colors of visible light. For a particular YCbCr range (BT.2020, P3, Rec.709, CCIR-601) a triangle can be superimposed to show the colors that fall within the acceptable range and those that are outside it. The color of the trace can be white, black, or the chromaticity hued background.

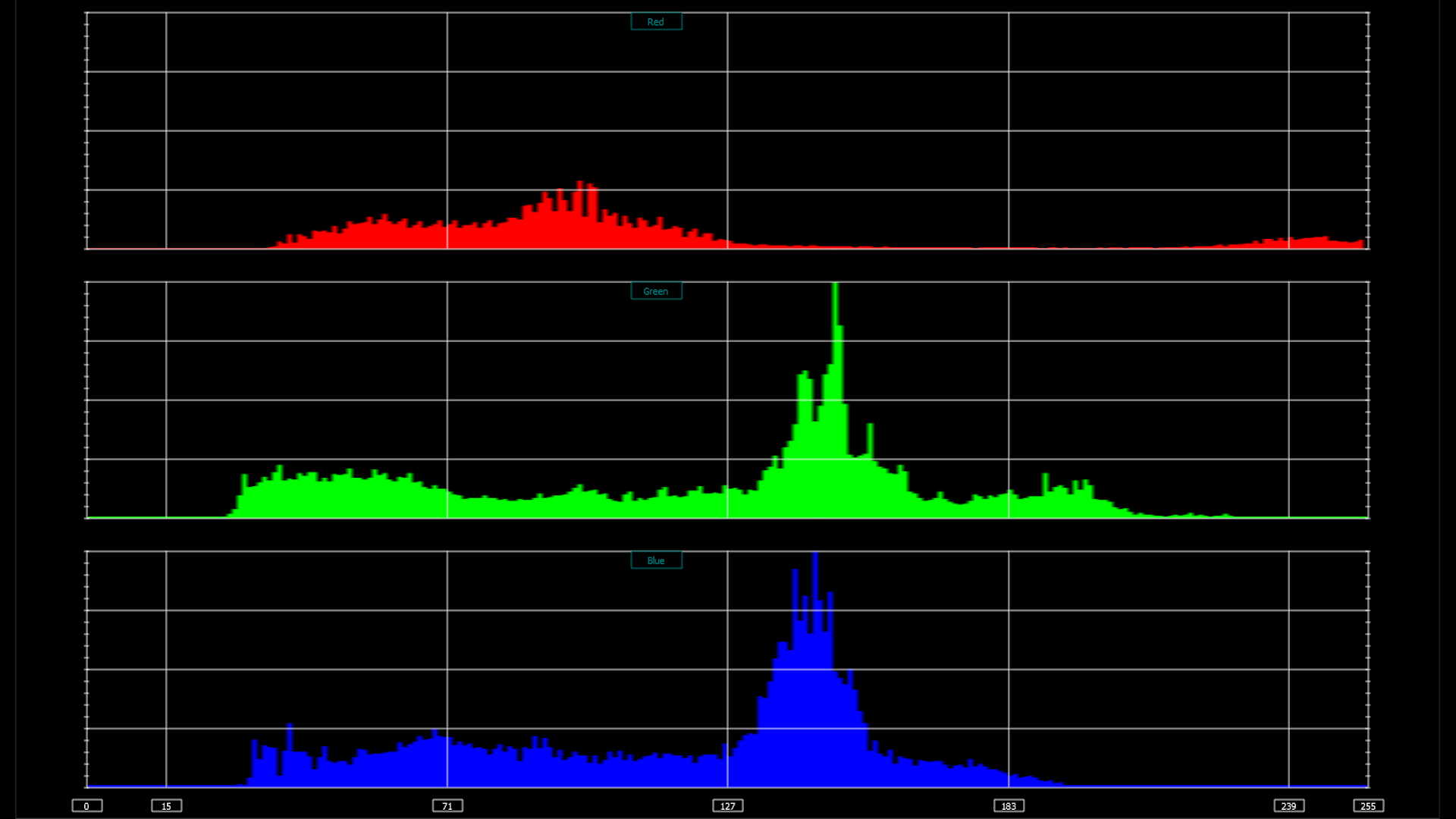

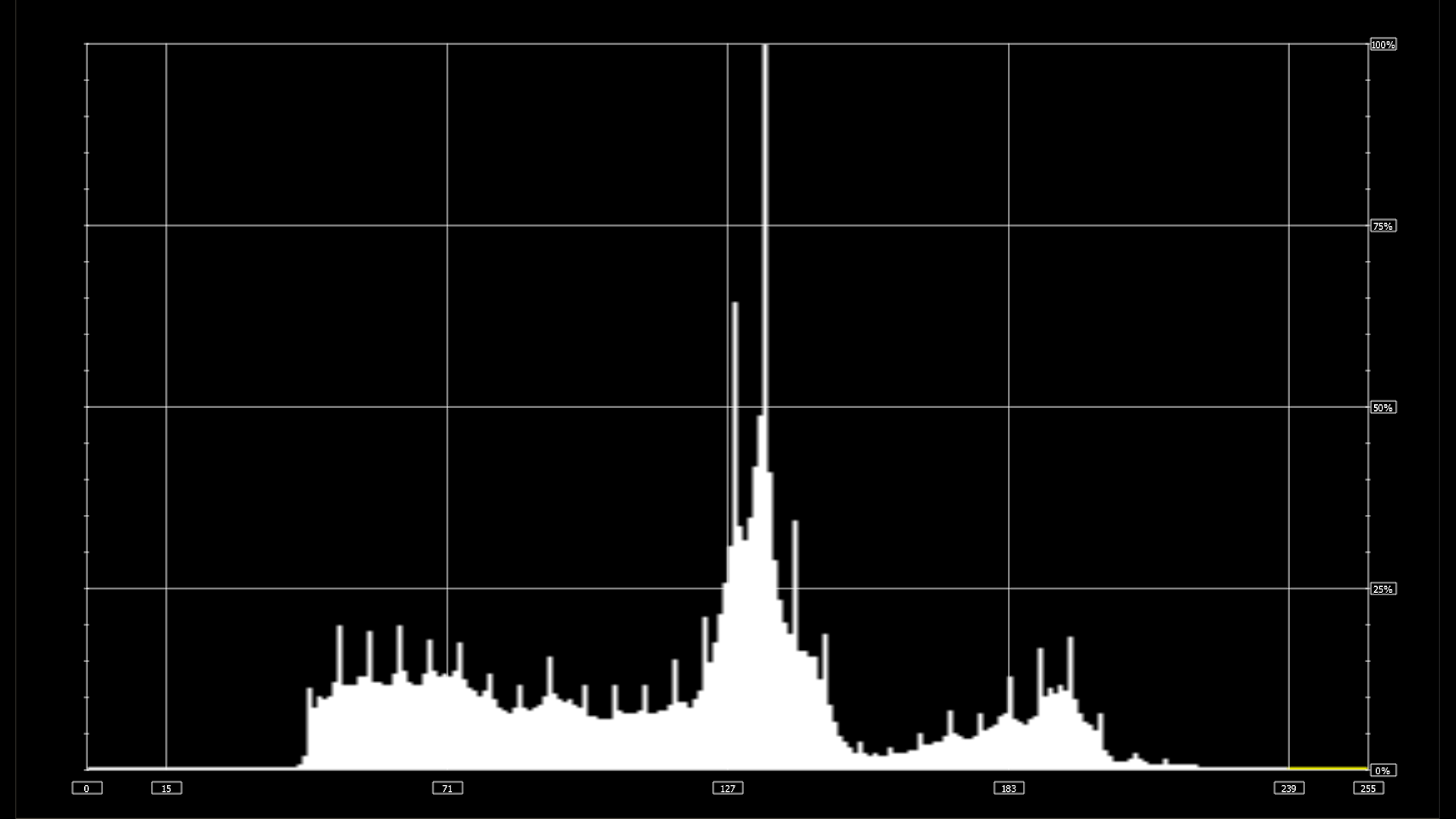

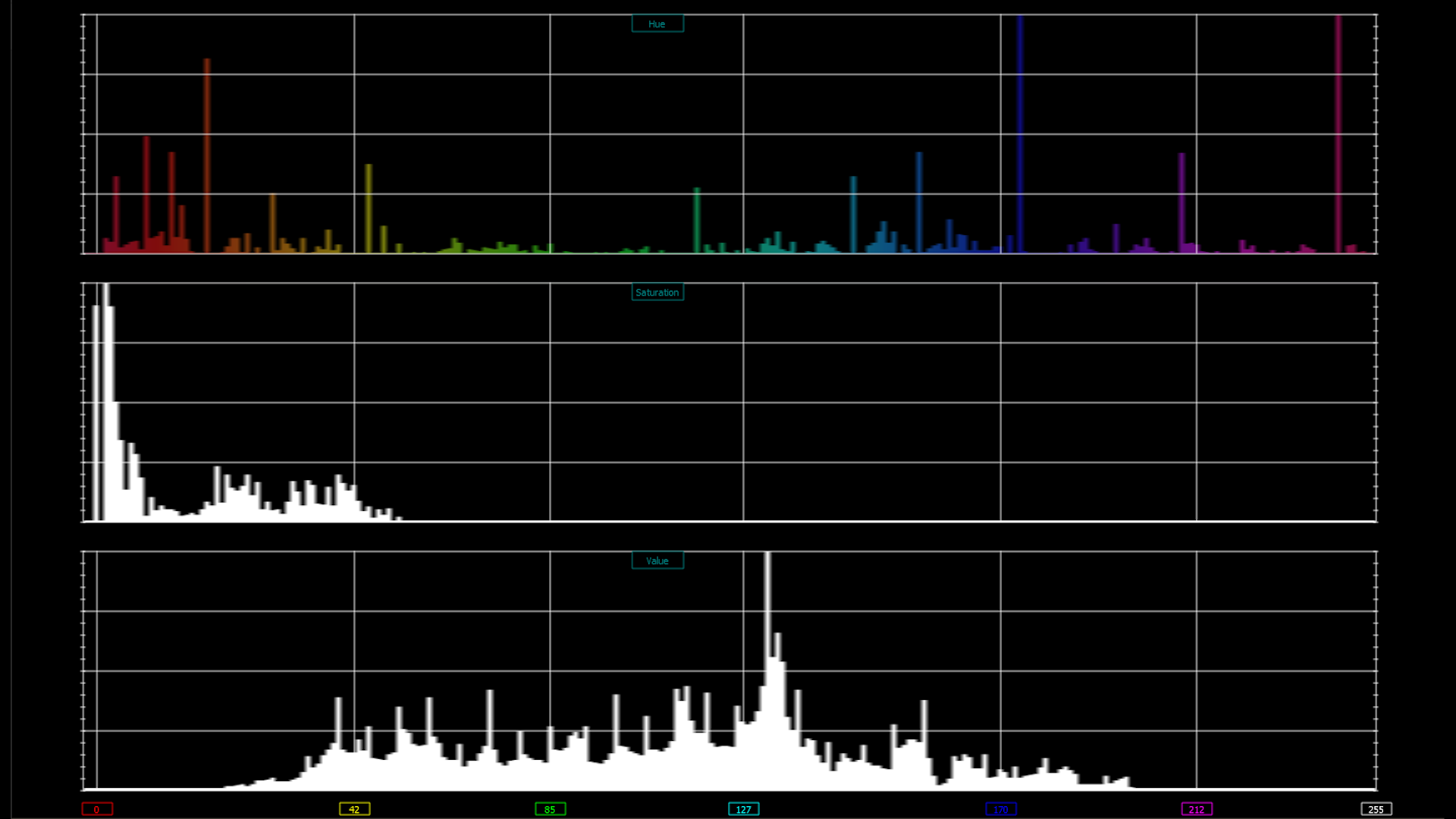

Luma Histogram - The Luma Histogram shows the distribution of red/green/blue, Y/Cb/Cr or hue/sat/luma within the signal as a series of discrete bars that make a continuous graph for each color. This display provides an overview of the tonal range of each color in the picture. Each bar is the count of the number of pixels for one of the 256/1024/4096 possible bins.

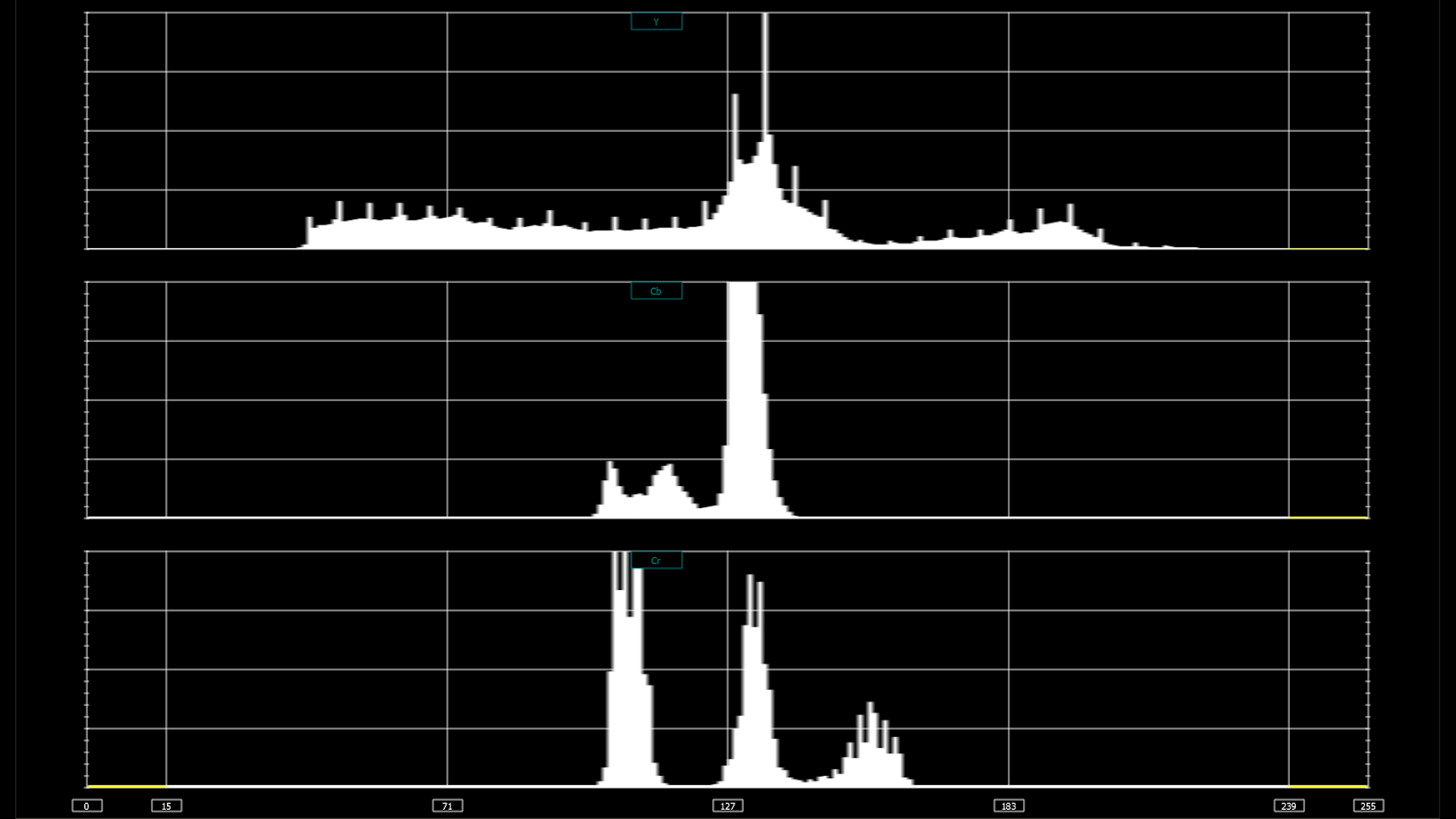

Histogram YCbCr - This histogram breaks up the signal in into luma and chroma components. The top histogram represents the luma power of the various levels in the signal. The Cb and Cr histograms that follow show the power distribution for those two components. A separate RGB histogram display is also available.

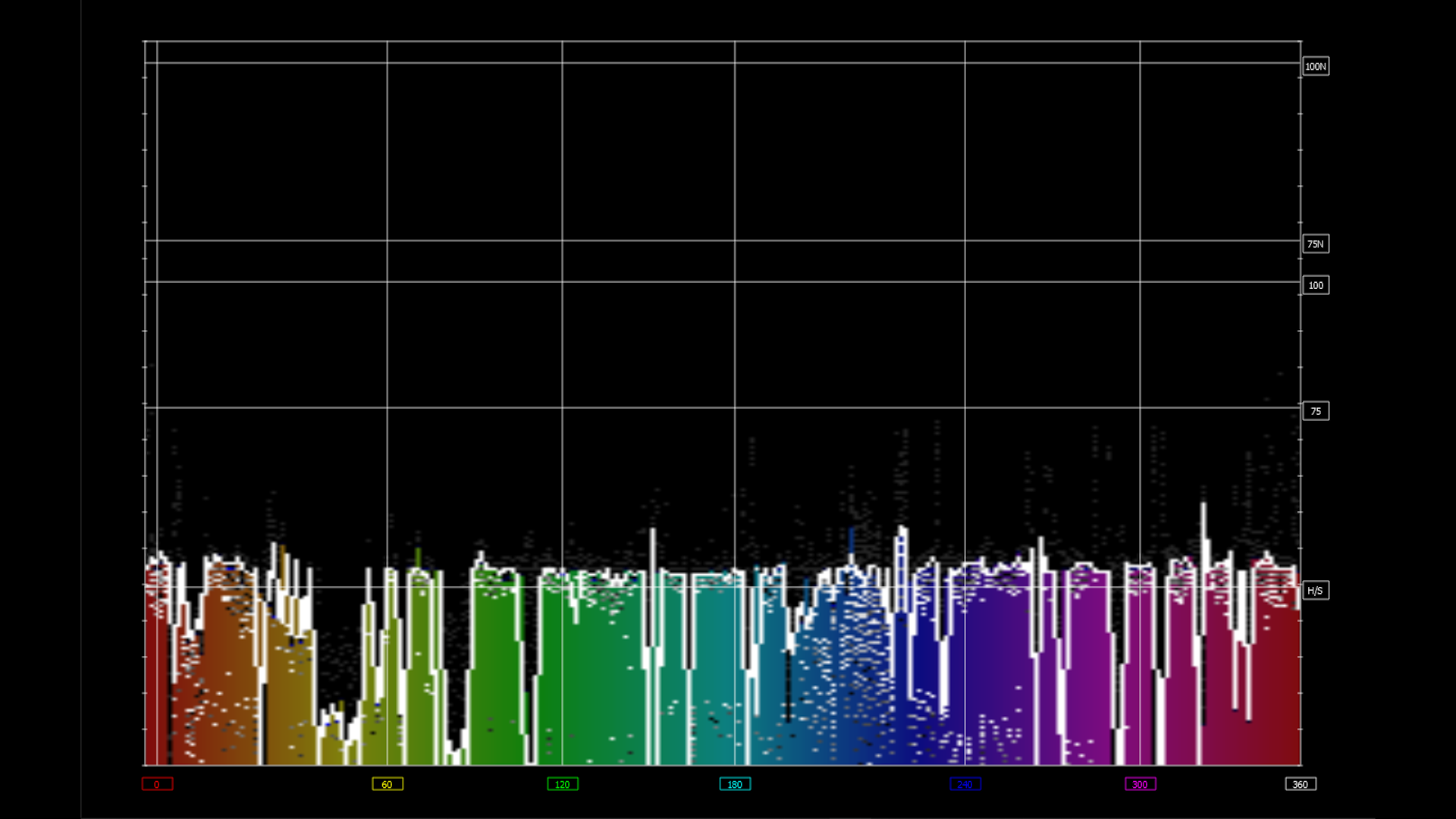

H/S Scope - The H/S Scope allows easy calibration of lighting or camera to a standard DSC ChromaDuMonde chart. The target color level or saturation is calibrated to a single horizontal line in the chart. The color hue component is mapped horizontally, with standard 601, 709 or 2020 targets as vertical lines. For details, click here.

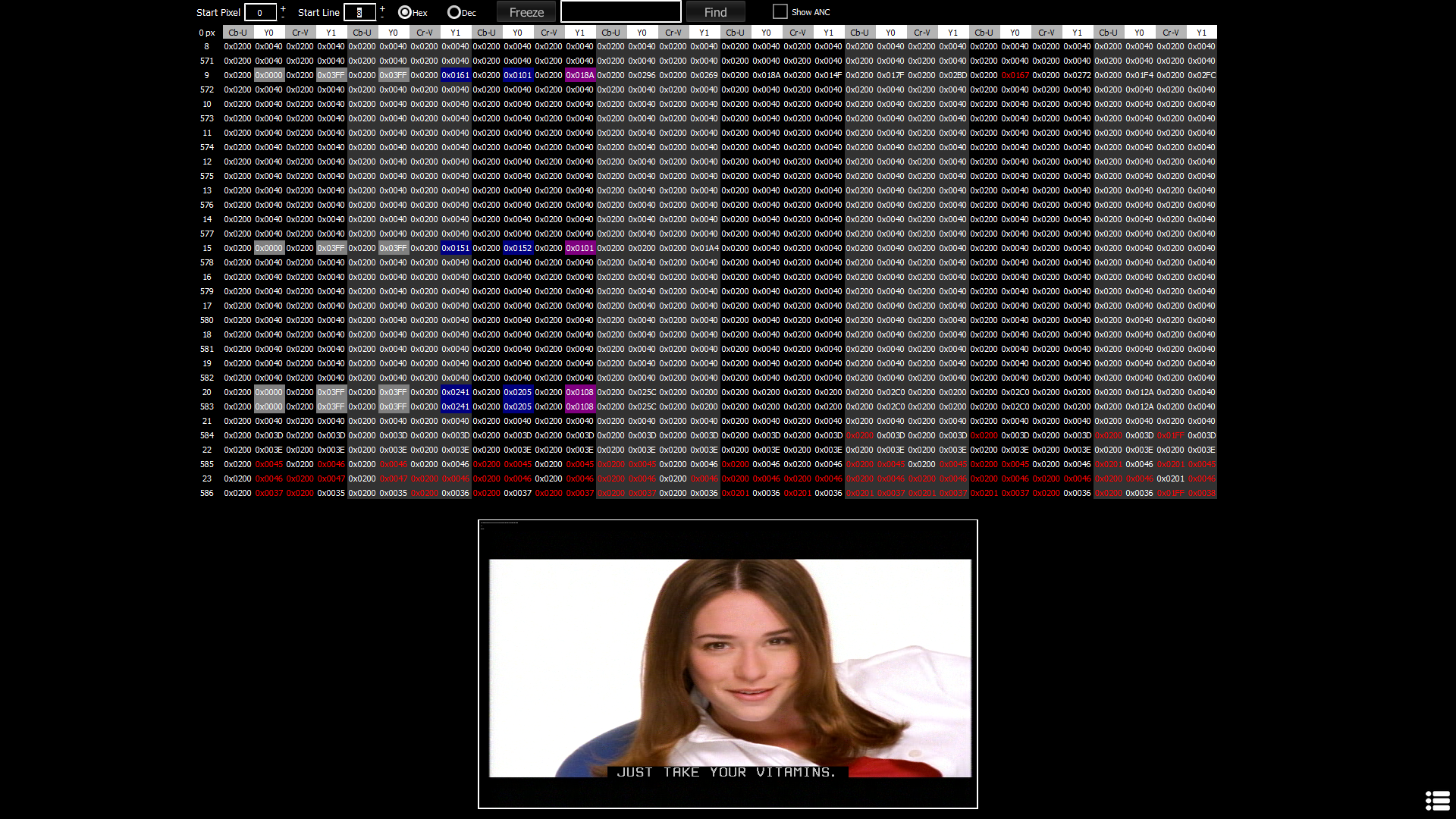

Data View - The Data view allows access to the raw pixel values being monitored on the HDMI or SDI input. Raw values are captured and displayed with no manipulation by the software. ANC Values are color coded, with Start values - white on gray, DID/sDID - white on blue, and Size - white on magenta. Pixel starts can be selected, along with lines, in the edit boxes above the data area.

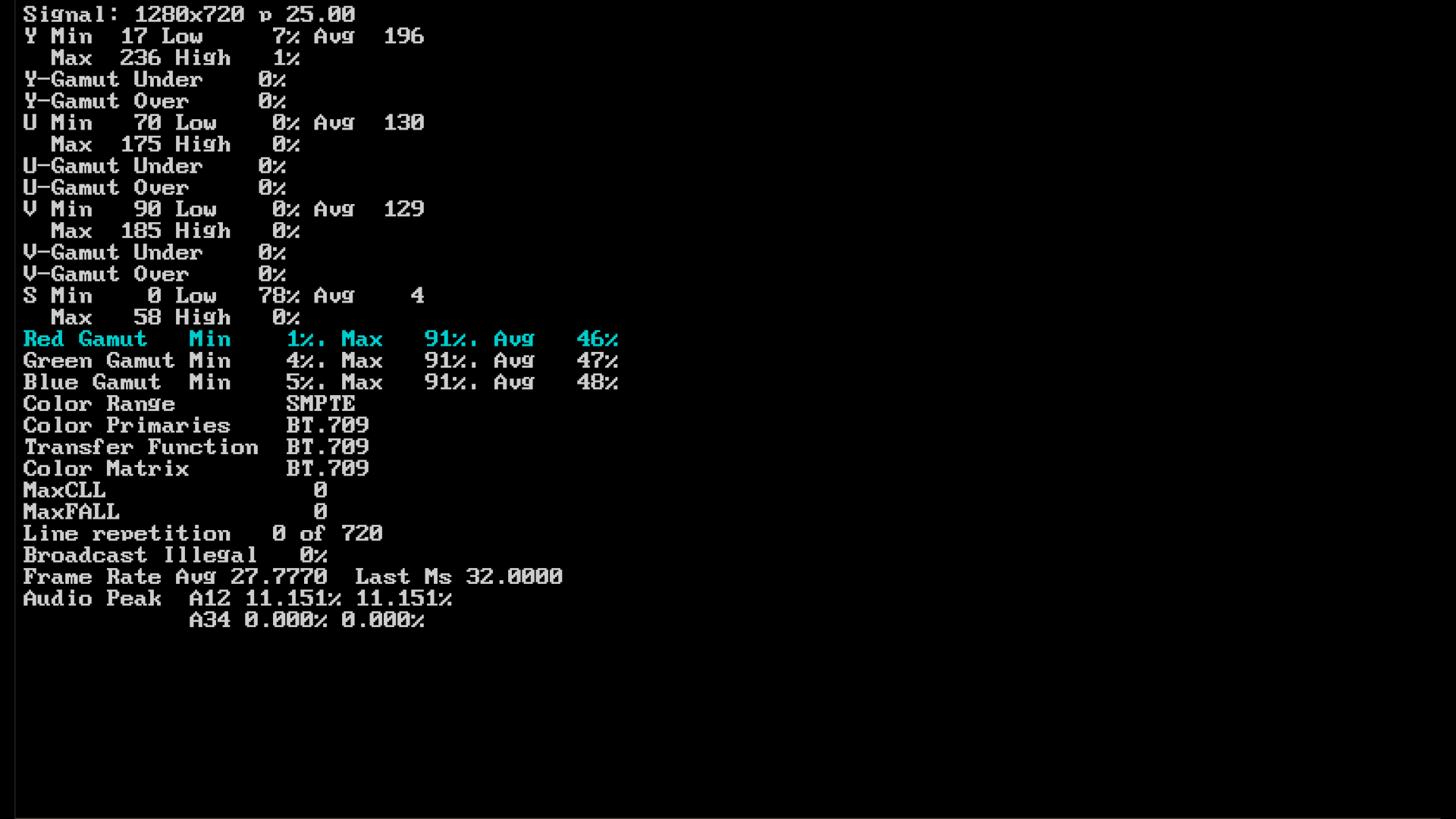

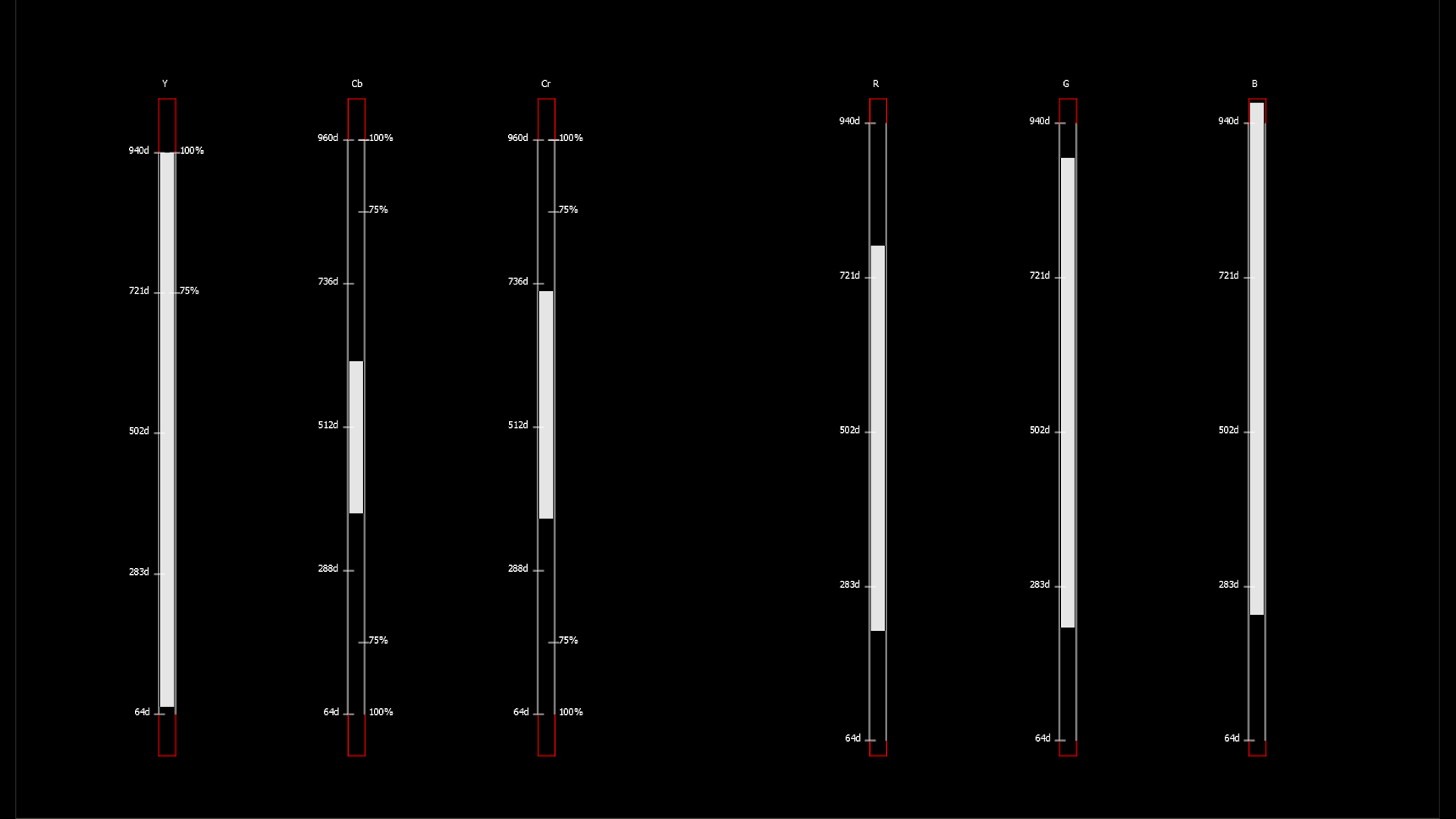

Status - The Status view presents real time data on the overall signal in terms of gamut, maximum and minimum chroma and luma, audio levels and MaxFALL/MaxCLL for HDR signals. Any issues detected by the status panel are automatically entered in the log file and window with time, type, source and reason.

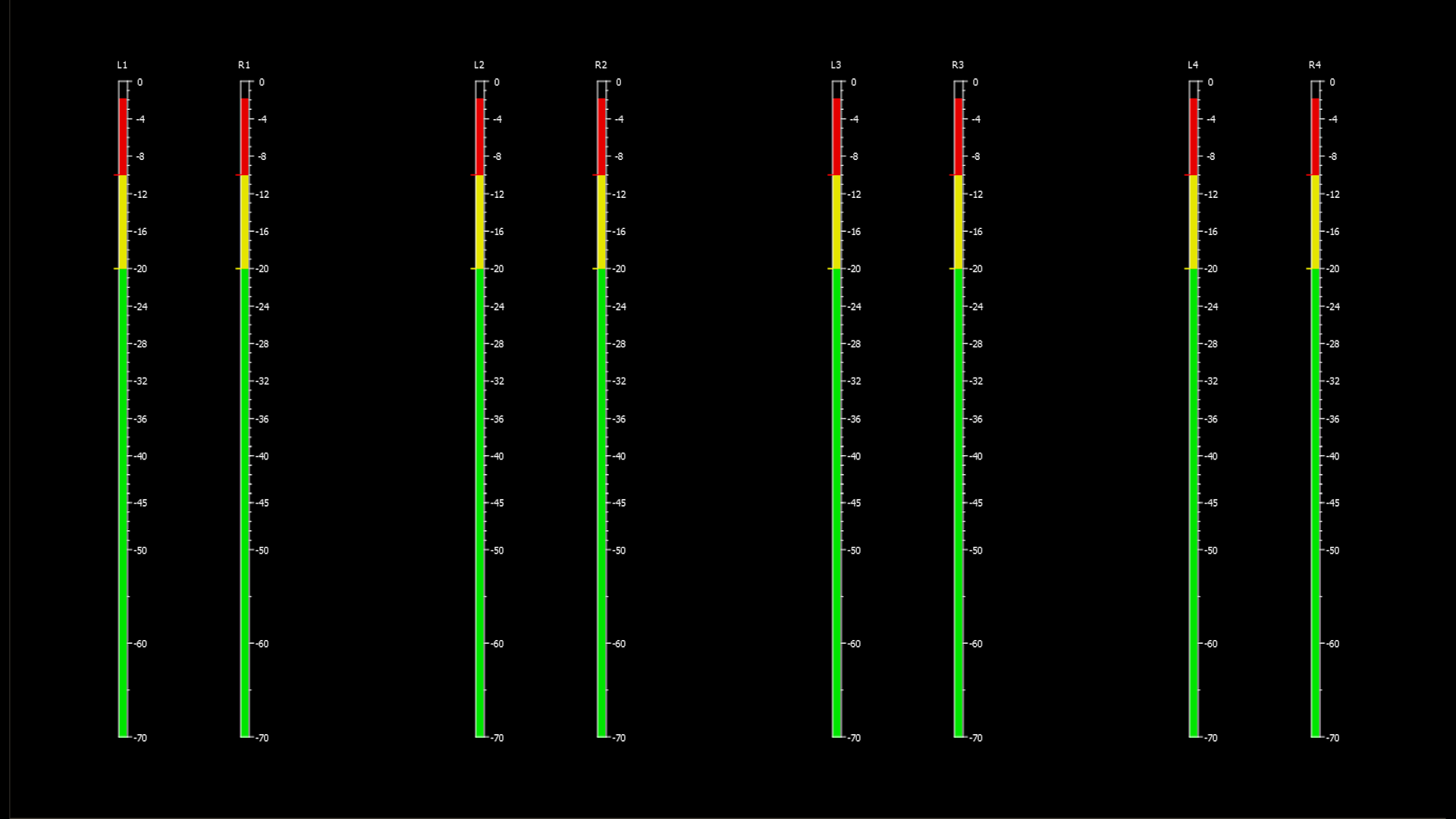

Audio Meters - Up to 16 audio channel RMS metering provided as a full page scope, in user selectable dbFS digital, SMPTE dbVU, or EBU dbVU scales.

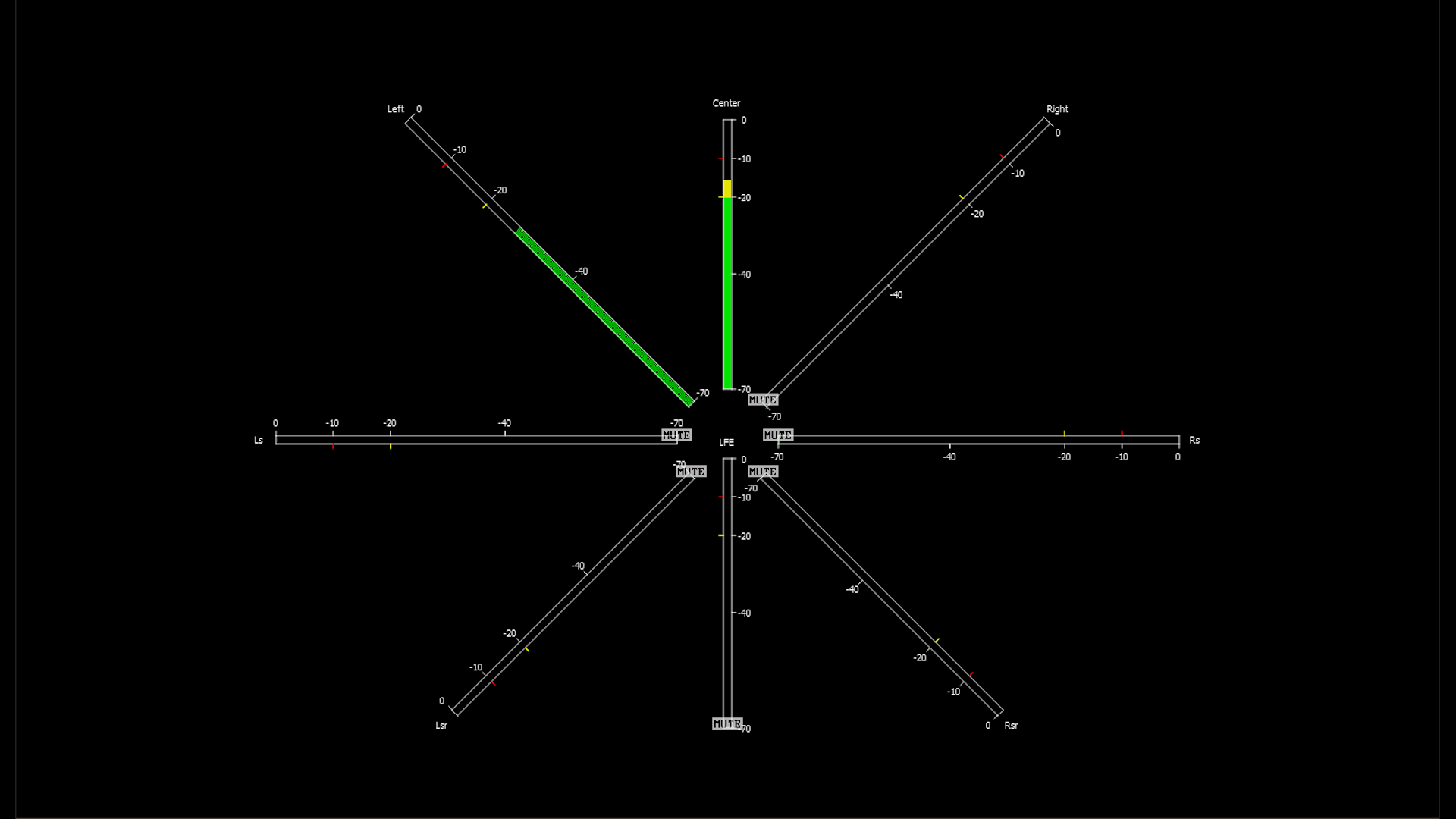

Surround Sound - 5.1 and 7.1 audio meters for surround sound workflows. SMPTE, ProTools, AAC, DTS, EXT, and Dolby setups supported.

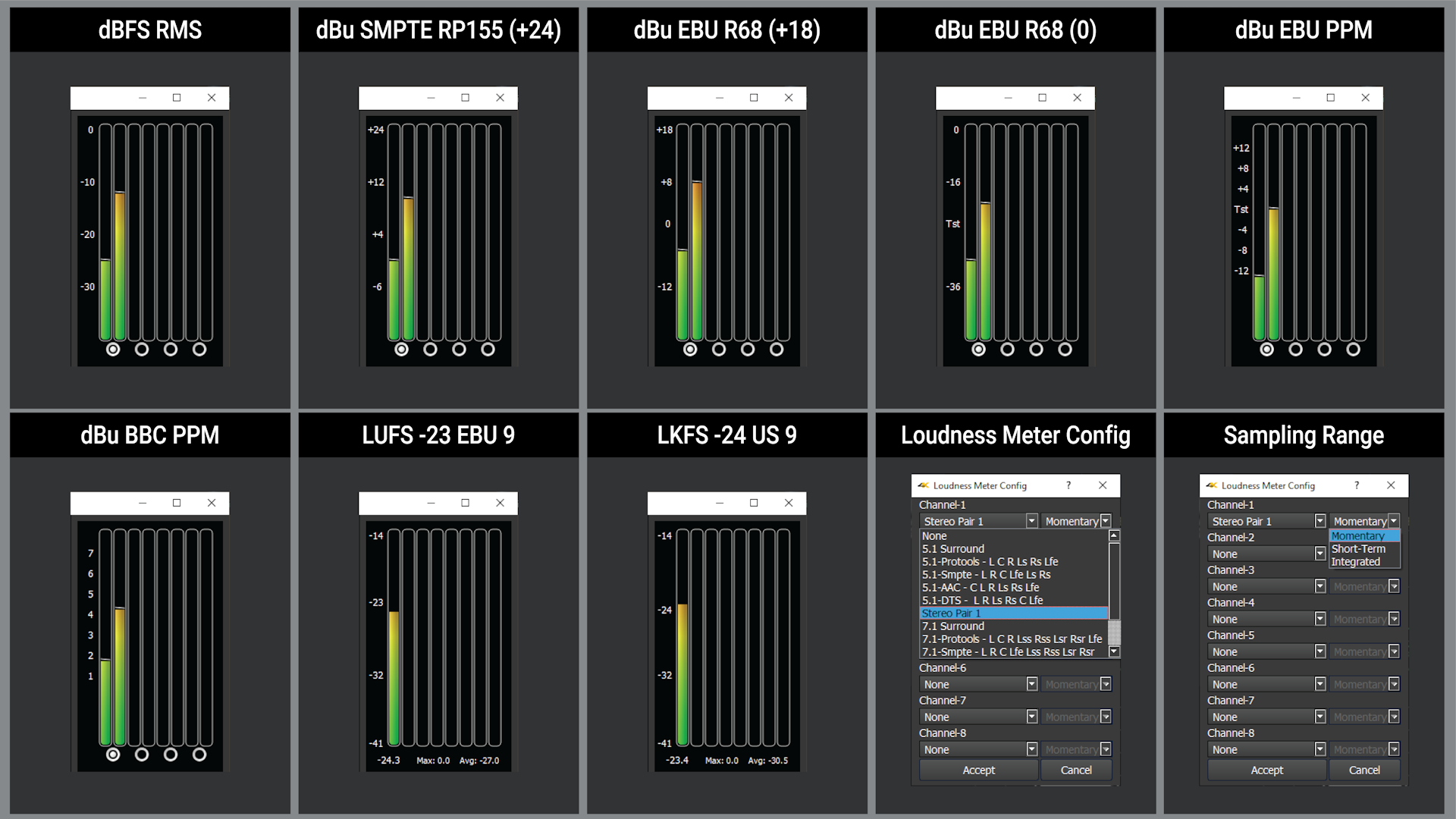

Audio Scale Settings - Audio Scale types include dbFS, SMPTE RP-155, EBU R-68, Loudness (at +9 or +18) and PPM with EBU or BBC markings.

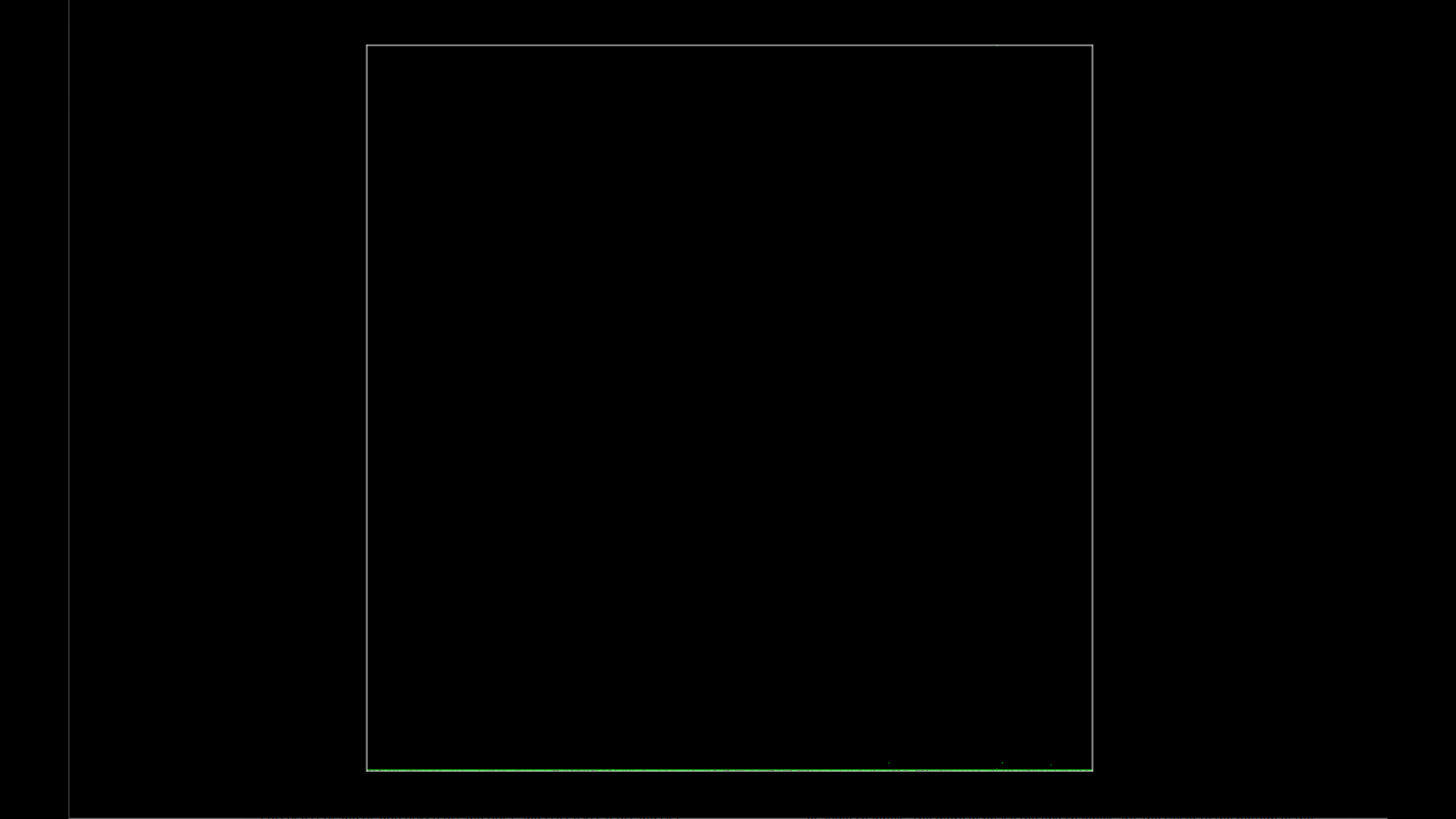

Audio Phase - The audio phase meter shows the relative density of two audio channels and the relative loudness as a line moving towards the louder channel.

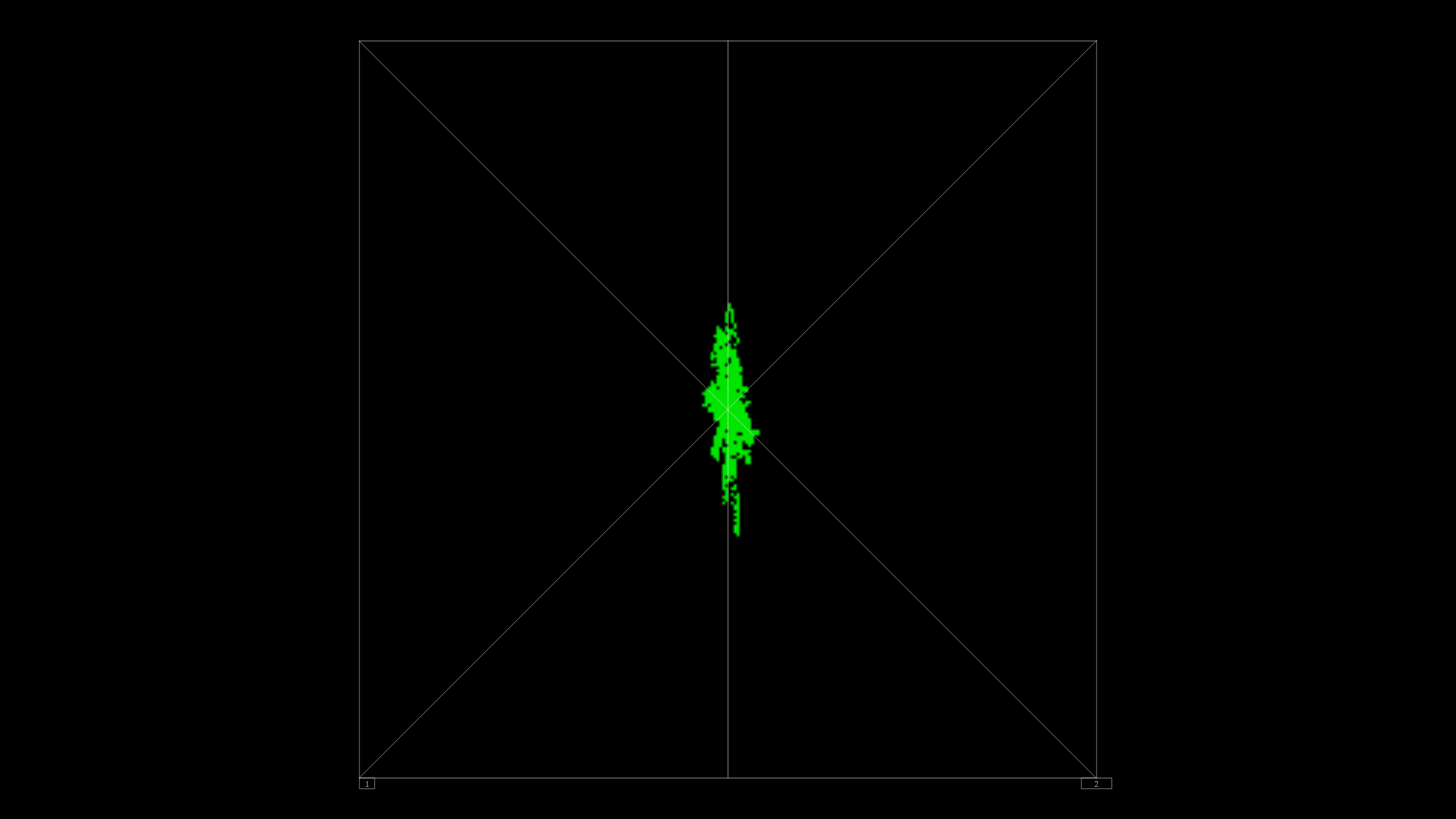

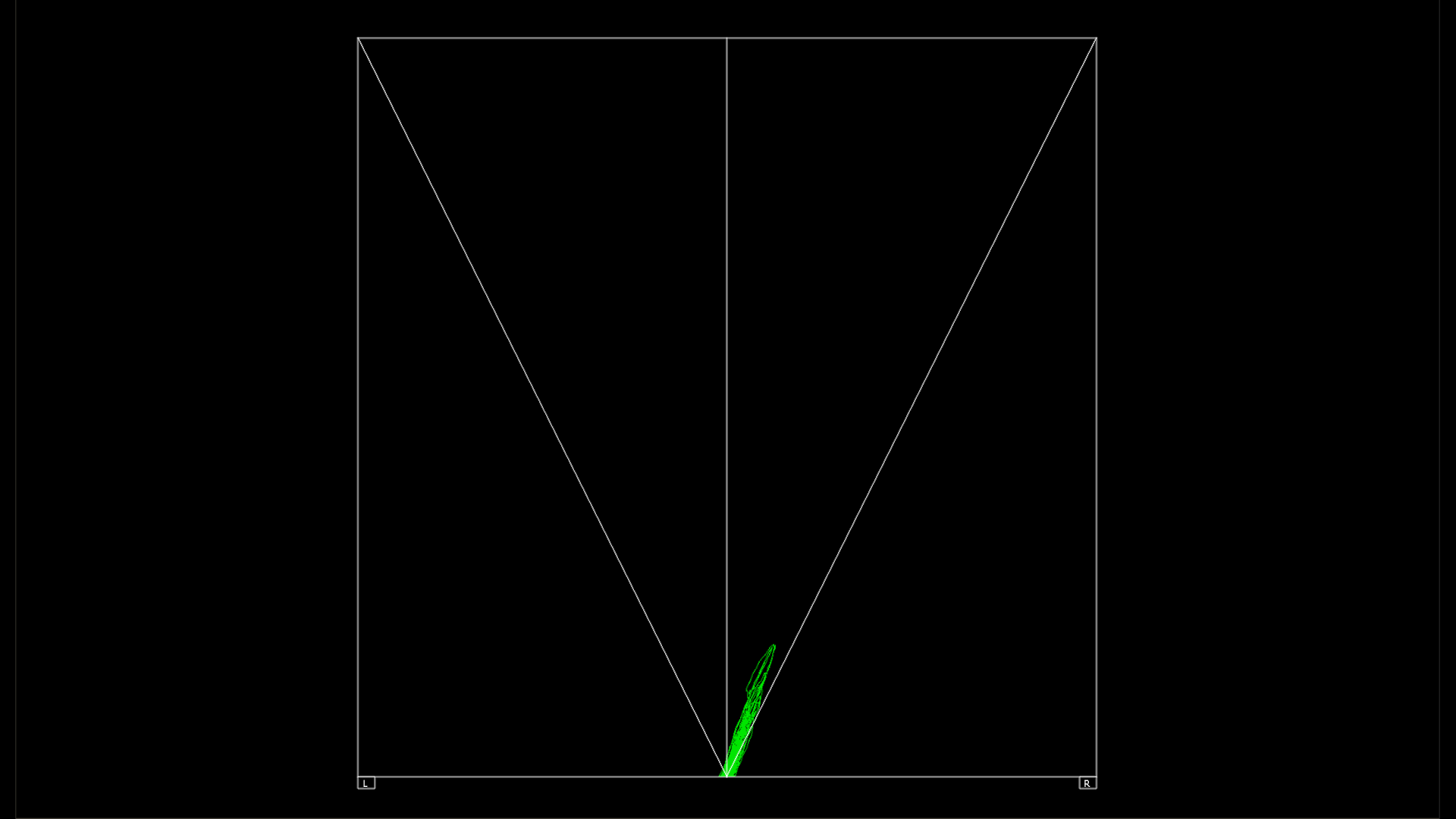

Audio Vector Lissajous - The audio phase meter shows the relative density of two audio channels and the relative loudness as a line moving towards the louder channel.

Audio Vector Lissajous XY - The audio phase meter shows the relative density of two audio channels and the relative loudness as a line moving towards the louder channel.

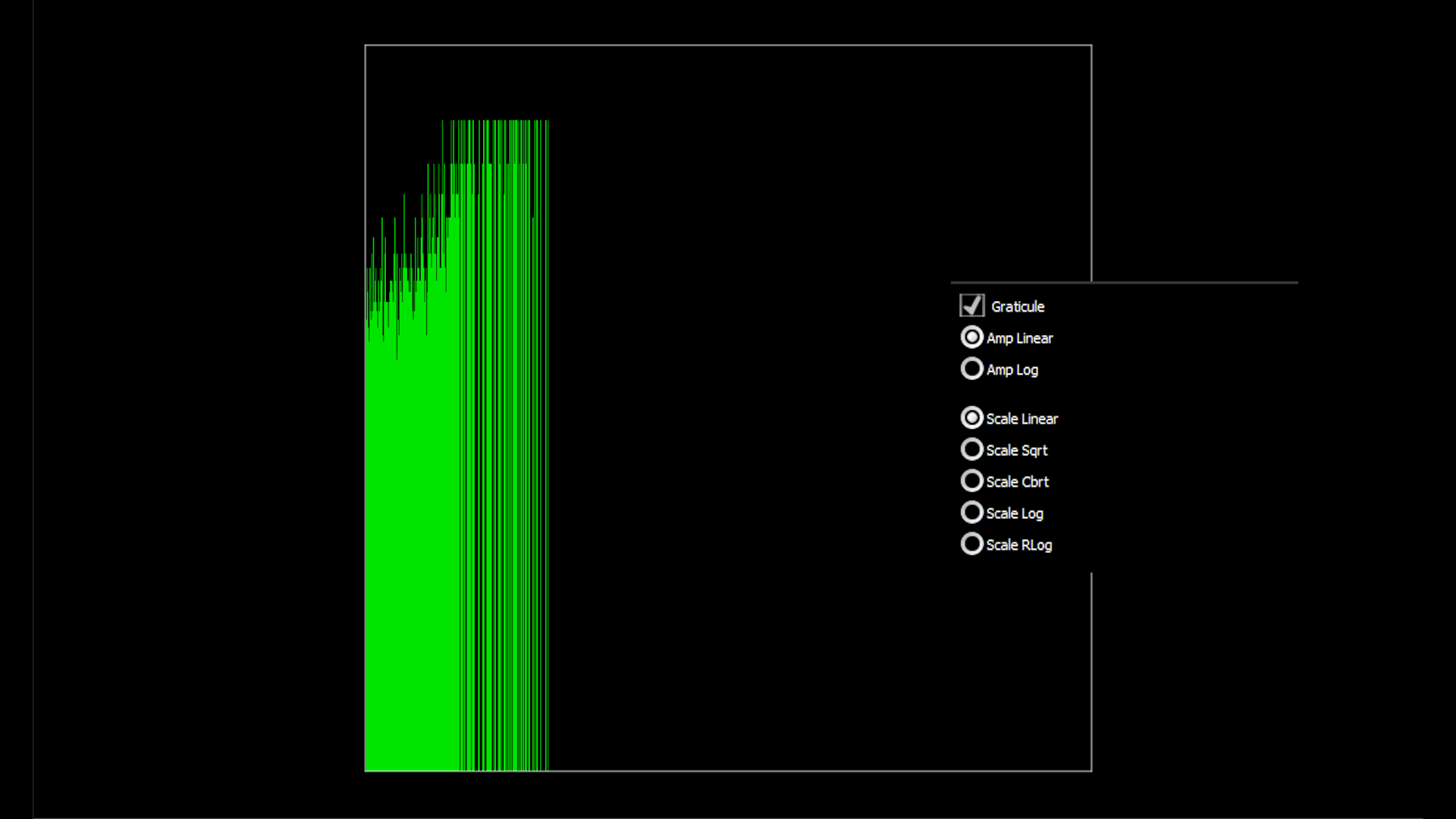

Audio Histogram Linear - The audio histogram displays a bar chart of the levels of the components of an audio signal.

Audio Histogram Linear Reverse Log - The audio histogram displays a bar chart of the levels of the components of an audio signal.

Audio Histogram Log - The audio histogram displays a bar chart of the levels of the components of an audio signal.

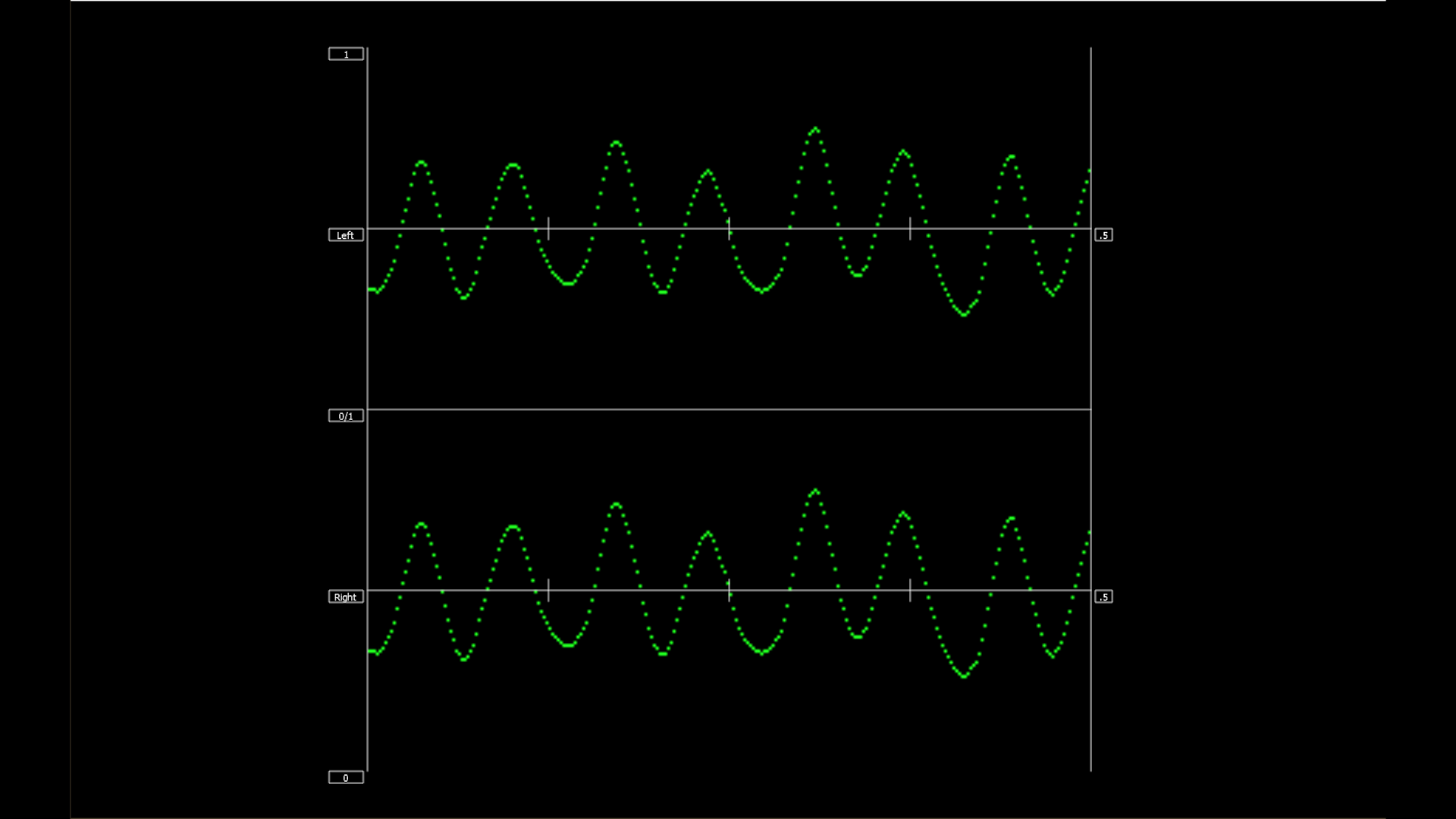

Waveform - The waveform displays the selected pair's audio as a standard wave.

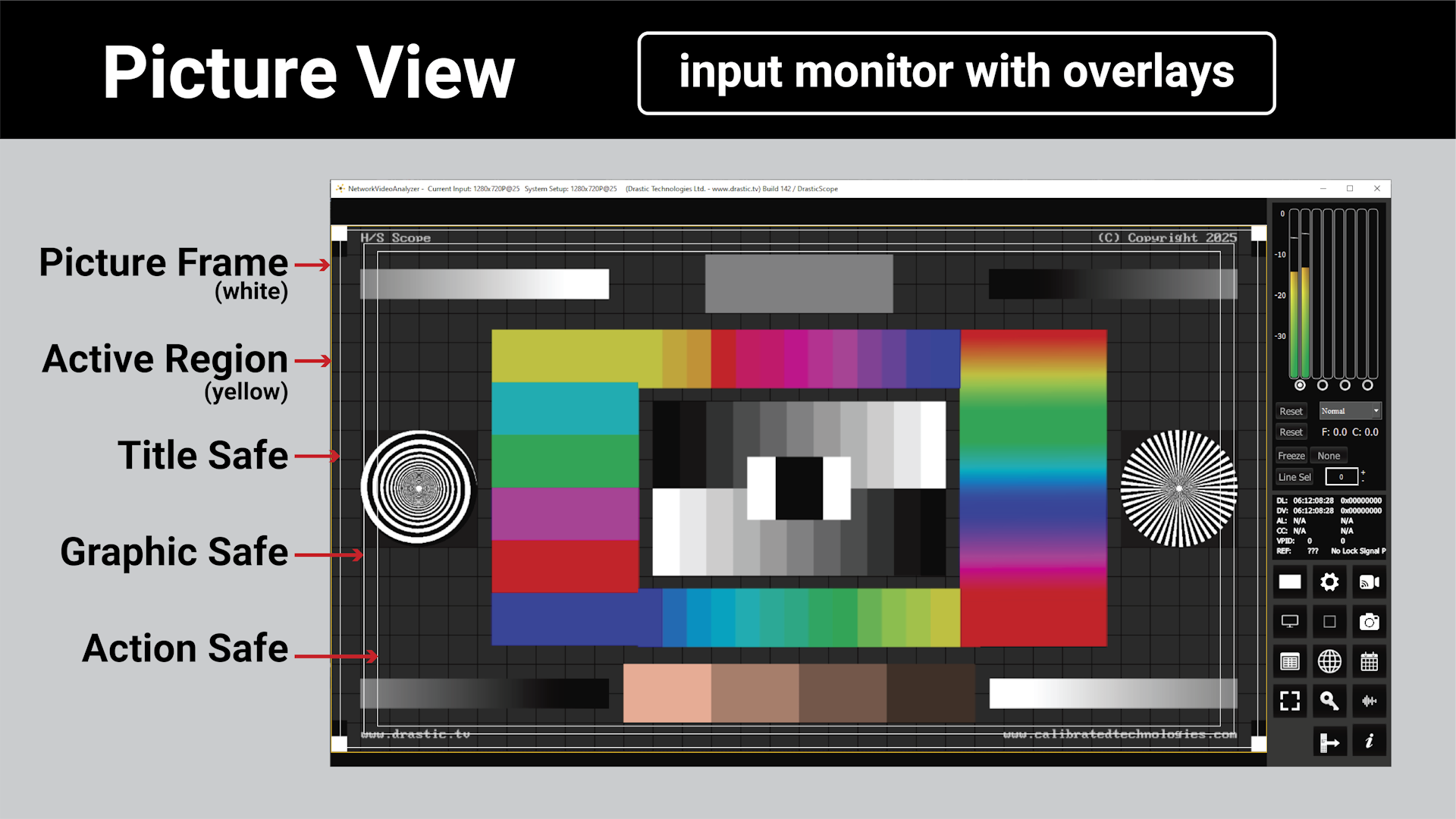

The Picture view shows the video signal, to confirm the source is correct and to display time code location. Action Safe, Title Safe, Graphic Safe, Picture Frame, and Active Region graticules are optionally available. A number of display modes can be set using the Display Mode selector:

Luma - Show only the Y or brightness of the picture.

Red - Show only the red channel.

Green - Show only the green channel.

Blue - Show only the blue channel.

Zebra Luma - Draw zebra bars where the luma is too high or too low.

Zebra Chroma - Draw zebra bars where the chroma is out of range.

Clipping - Draw green anywhere the signal is too low, or red anywhere the signal is too high

Edge Difference - Highlight every edge in the picture.

Focus Assist - Show areas of the image that are in focus.

Flip/Flop - Flip the picture horizontally or vertically.

False Color - Show each exposure level as a color. See Here for details.

Luma Key - Show the video luma keyed over a checkerboard or image.

Green Screen - Show the image green screen keyed over a checkerboard.

Green Screen Despill - Show the image green screen keyed with edge despilling over a checkerboard.

Closed Caption and XDS Data Detection and Display - Decode closed captions from line 21 encoding (SD) and line 9 ANC encoding (HD). SD 608, HD 708 and OP-47 can all be decoded in real time and displayed as text over the picture. The actual data can also be viewed on line 9, or 21 for SD, in data mode. XDS (extended data service data) is also displayed.

Error Log Window - The error logging review window displays the video and audio errors from the log stored on disk. These include loudness overages, out of gamut, luma too high/low, chroma too high/low, broadcast illegal colors, repeating lines, saturation errors, signal loss and recovery, and other error detection.

ScopeDirect Transmitter for Avid/Adobe - NetXScope includes a ScopeDirect Transmitter for Adobe and for Avid that connects to the editor output directly without SDI/HDMI or IP Video being used to connect them.

OpenFX plugin for DaVinci Resolve - NetXScope includes an OpenFX plugin for DaVinci Resolve that connects to the editor output directly without SDI/HDMI or IP Video being used to connect them.

8 Bit Signal - 8 bit signal processing is supported, including detection of 8 bit signals in a 10 bit path (note the missing lines/bins).

10/12 Bit Signal - Smooth scopes on true 10 and 12 bit signals display every possible level in the signal, allowing finer analysis.

WebSix_PicVectorChromaticityWaveLumaWaveRGB_1080

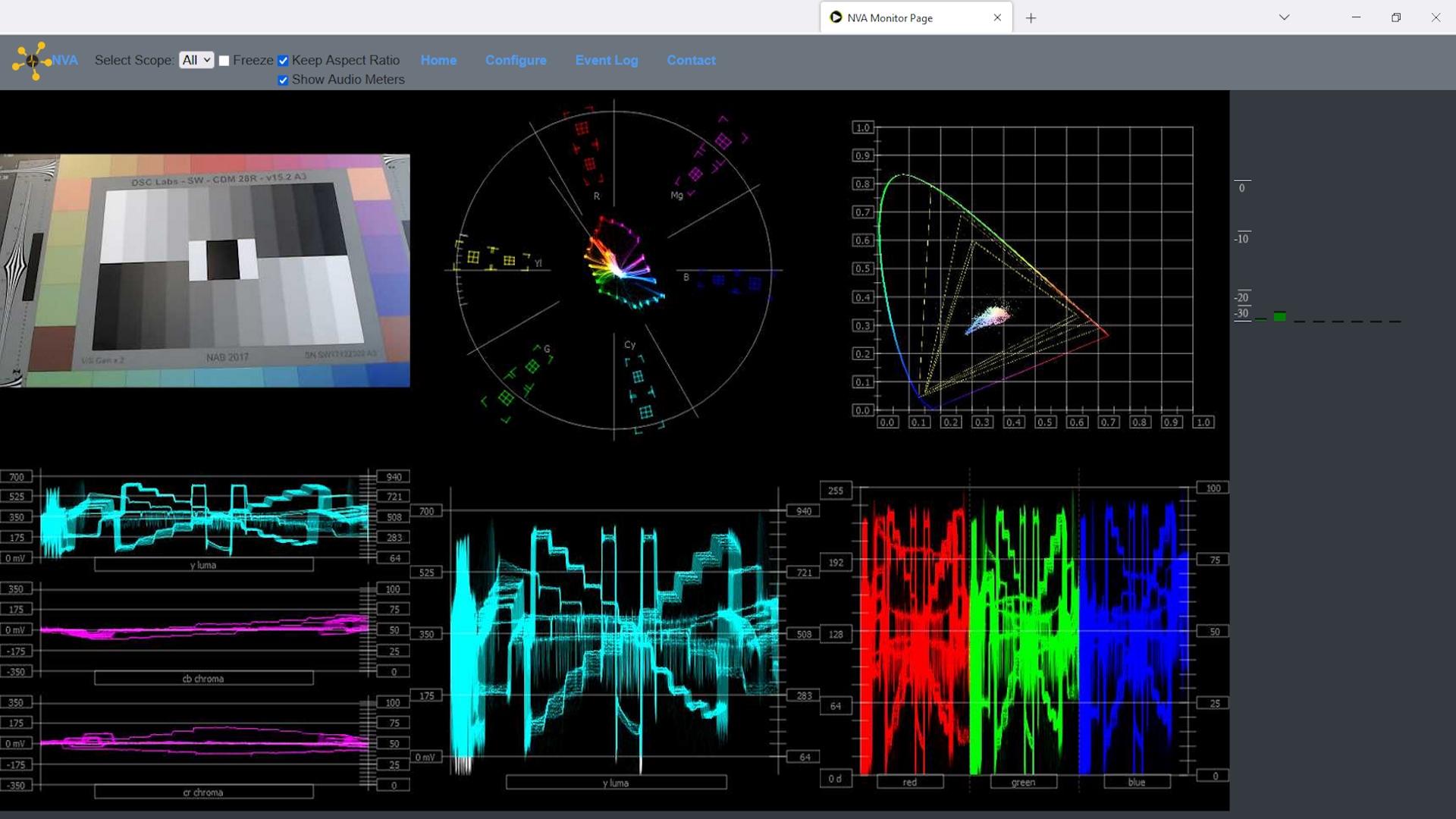

HTTP/Web Server - Check the status of your facility from anywhere with our live HTTP/Web page interface. Real time updates in pure HTML5 without any extra plugins.

Remote Desktop Access - You can also control and view using standard remote desktop tools to create a full featured monitor for your entire facility. This video tutorial gives an overview of setting up a remote system with an AJA U-TAP and KUMO series router.

Zoom and Pan - The waveform monitors and vectorscope zoom in for a closer look at low saturation signals, or the luma elements of the waveform. The live picture can also be zoomed in or out, and panned with the mouse. To zoom, roll the mouse wheel. To pan, click and drag. To reset to normal view, right click the mouse. Specific 1x, 2x and exact decimal zooms are also available in the config dialog.

Signal Compare - The signal compare feature can be used to freeze a complete frame of video (two fields in interlaced), every second line (field), or at a 50/50 dissolve to compare two signals or cameras. Once frozen, all the standard scopes are still available for setup and comparison. While a frame is frozen, the comparison mode and type of scope can be changed.

User Markers, Lines, Circles and Boxes - Users can place plus sign markers (+) and lines on any of the scopes, that will persist to help make exact measurements between different signals.

Raw and JPEG Capture, Presets - The incoming image can be captured as a raw (YUV, V210, or RGB10, depending on the input) image in full, bit perfect resolution or a JPEG version for easy sharing. The entire scope's interface can also be captured.

Full HDR Support - Along with Rec 709, both SMPTE 2084/HDR10 and HLG luminance HDR profiles are supported. BT.2020/WCG is also supported to allow analysis of full color WCG, as well as in contained color display standards list P3.

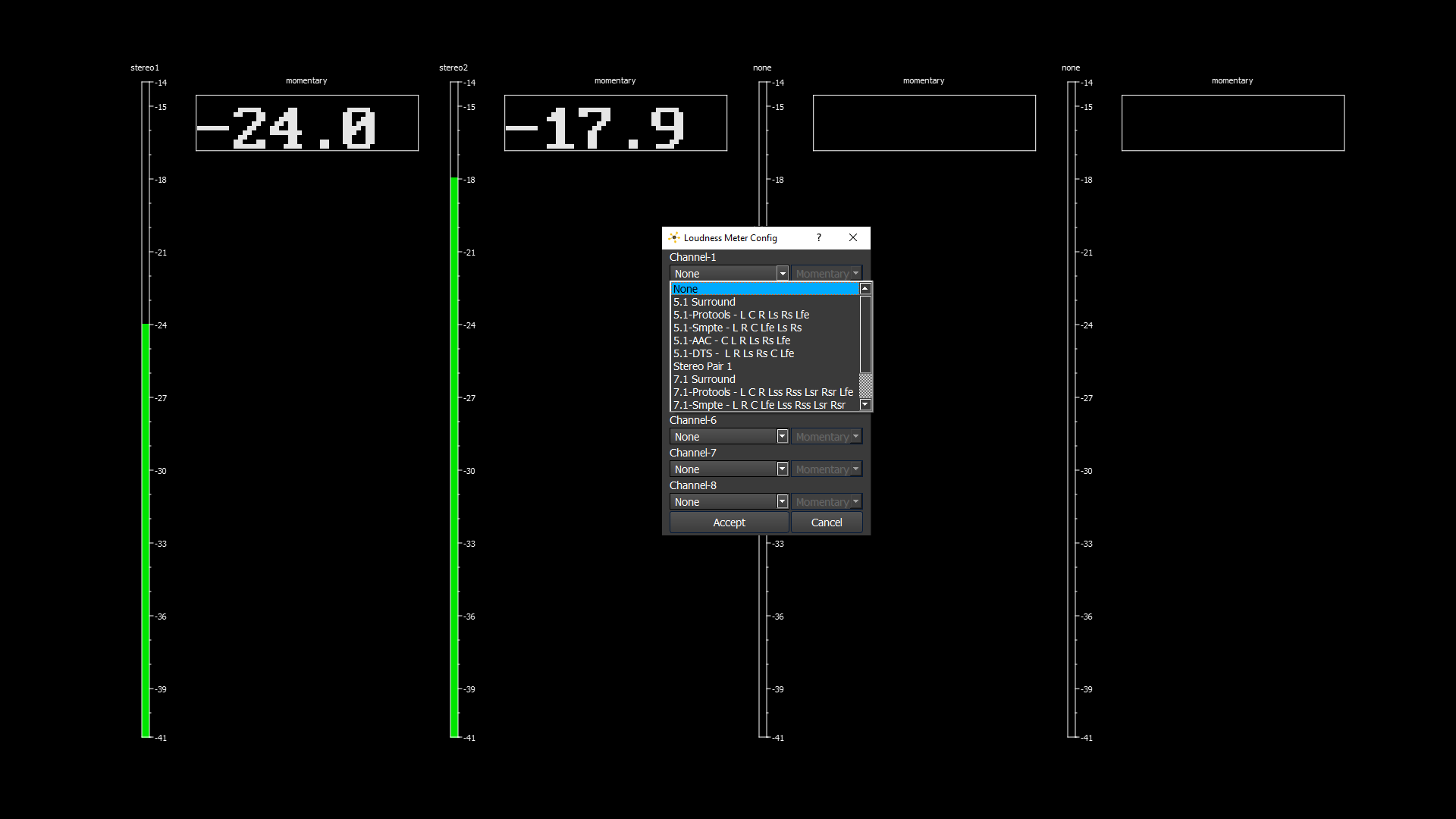

Loudness and RMS Metering - All audio meters can be set for EBU9 or EBU18 loudness monitoring, as well as RMS/peak. The status window also supports loudness as a floating point value, and any excursions are automatically collected in the on disk error log.

Vertical Blank Analysis - Up to 32 lines of vertical blank can be analyzed along with the active picture. Captions, time code and other decodable metadata is automatically detected. Any SMPTE DID/SDID packets found are highlighted in the HEX Data view.

Line and Region Select - as well as full picture analysis, the scopes can be set to analyze a single line or a rectangular area of the picture, to detect finer detail errors.

Time Code - read multiple time code types simultaneously and display them in the lower third data area. RP-188 VITC and LTC, SMPTE LTC (analog), vertical blank encoded VITC and RP-215 film KLV time code are all supported.

Full Screen Mode - Double clicking on the interface will put Network Video Analyzer into full screen mode. This maximizes the space for the scopes and the picture, but maintains a time code info line at the bottom of the monitor.

Camera Support - All SDR (HD/SD) and HDR/HLG cameras are supported along with direct support for ARRI, Canon, RED, Sony, Panasonic and AJA production cameras, utilizing standard or custom curves and/or LUTs.

Main Use Cases - HDR/HLG/WCG monitoring and validating, SD/HD monitoring. live production, DIT pipelines, broadcast monitoring, remote network monitoring, post production, signal QC and final HDR mastering.

Hardware and OS Support - NetXScope is available for Windows 64 and Red Hat/CentOS 64. It is also available as a hardware device from our partner CineSys.

Capture Board Support - ST-2110 workflows require a Matrox, AJA, or NVIDIA/Rivermax hardware configuration. For 8K workflows, the AJA Kona 5 is recommended. For 4K-SD workflows, see 4KScope for a list of supported hardware.

90 Seconds With 4KScope

Full HDRScope demo / walkthrough

Remote Desktop with 4KScope

Video Inputs

(hardware dependent)

SDI

Single Link SDI/HD-SDI 4:2:2 8/10 bit
Dual Link HD-SDI 4:4:4 10/12 bit
Dual Link HD-SDI 4:4:4:4 10 bit
Quad Link HD-SDI (Quad HD and 4K) 4:2:2 or 4:4:4 8/10/12 bit
3G/6G Dual Link (see dual link above)
3G/6G Dual Rate (see single link above)
12G QHD/4K Quad Link and 2SI 12G (sample interleave)
12G x 4 SUHD/8K 2SI
CCIR-601 (SD), Rec.709 (HD), BT.2020 (WCG), P3 or Rec.709 (QHD/4K)
HDR (High Dynamic Range) as ST2084/PQ/HDR10 or HLG

HDMI

HDMI (1.4 or 2.0+, hardware dependent)

SMPTE

SMPTE 2110/2022-6

IP Stream

SRT, RIST, UDP, RTP, TR-01, TR-07

NDI

NDI - (Network Device Interface) Any NDI audio/video source

ScopeDirect

ScopeDirect Transmitter (Adobe)
ScopeDirect OpenIO (Avid)
ScopeDirect OpenFX (Resolve)
ScopeDirect AvVr3D for UnReal Engine

Desktop

Desktop - receive audio/video from application running on the same machine

Sync

Reference video sync (Blackburst or Tri-Level, hardware dependent)

Audio Inputs

(hardware dependent)

NewTek NDI^®
Embedded audio, up to 16 channels 24 bit
Analog audio, up to 16 channels 16/24 bit
AES/EBU audio, up to 16 channels 24 bit

Outputs

Main output (computer monitor) from HD up to 8K
Secondary down converted output available
SD/HD/2K down conversion to HDMI and analog
HDMI 4K/8K quadrant output
Available in monitor HDR -> SDR picture conversion

Format Support

(hardware dependent)

SD - PAL/NTSC
720P - 23 / 24 / 25 / 29 / 30 / 50 / 59 / 60
1080i - 23 / 24 / 25 / 29 / 30
1080PsF - 23 / 24 / 25 / 29 / 30
1080P - 23 / 24 / 25 / 29 / 30 / 50 / 59 / 60
2K Digital Cinema (2048 x 1080) - 23 / 24 / 25
2K Film (2048 x 1556) - 14 / 15 / 23 / 24
UltraHD/UHD (3840 x 2160) - 23 / 24 / 29 / 30 / 50 / 59 / 60
4K (4096 x 2160) - 23 / 24 / 29 / 30 / 50 / 59 / 60
SUHD (7680 x 4320) - 23 / 24 / 29 / 30 / 50 / 60
8K (8192 x 4320) - 23 / 24 / 29 / 30 / 50 / 60

Processing Modes

8K/SUHD/4K/QHD/HD/SD Processing Modes:

YCbCr 8 bit 4:2:2
YCbCr 10 bit 4:2:2 (standard single link)

4K/QHD/HD/SD Processing Modes

YCbCr 8 bit 4:2:2
YCbCr 10 bit 4:2:2 (standard single link)
YCbCr 12 bit 4:4:4 (dual link or 3G)
RGB 8 and 10 bit 4:4:4:4
RGB 10 and 12 bit 4:4:4 (standard dual link or 3G)

Metadata

(hardware dependent)

LTC/SMPTE analog time code and user bits
VITC/D-VITC vertical blank time code and user bits
RP-188 HANC time code and user bits
RP-215 VANC time code, user bits, key code and ink code
Active Format Description detection
DID/SDID detection and highlighting

Recommended Hardware

(hardware dependent)

For SMPTE 2110/2022

Mellanox NVIDIA Bluefield-2/3 (requires a separate Rivermax software license plus one year of support)
Mellanox NVIDIA Connect-X 6/7 (requires a separate Rivermax software license plus one year of support)
Temporary (duration limited) Rivermax licenses for testing can be made available on request
Details on setting up Rivermax can be found here.

For 8K/SUHD

AJA: KONA 5G

For 4K/QHS/HD/SD

AJA: KONA 5G
Please see our Supported Hardware list for a full list of supported 4K-SD hardware

Download NetXScope Software

End User License Agreement: International Canadian

Available for Windows 7 or greater, or CentOS/Red Hat 7.4-7.8

To ensure optimal hardware support, please make sure your drivers are up to date:

Blackmagic Design drivers (12.x)
https://www.blackmagicdesign.com/ca/support/family/capture-and-playback

AJA drivers (16.x) [UVC/U-Tap drivers are in OS]
(note: 17.x drivers are not currently compatible with our software)
https://www.aja.com/support

Bluefish444 drivers (6.3.2.2)
https://bluefish444.com/support/downloads.html

Download NetXScope Software
	Download DrasticScope V8 for Window 64	Current release
	Download NetXScope V7 for CentOS/Red Hat	Current release

DrasticScope is the install for our version 8 signal analysis software. It provides equivalent levels for sdiScope, 4KScope, HDRScope, and NetXScope, depending on the license. It also offers a free version for basic setup and training purposes.

NetXScope installs in demo mode, with limited functionality. To unlock the full feature set of the software you will need at least a temp license. On first run there should be an automated option to obtain a temp license for testing. In any case you can generate a site code and send it to us at: authorization@drastictech.com. We will send back a site key which will remove the demo limitations. Prior to purchase, the key will be temporary. There is more detailed information on the licensing process here: http://license.drastictech.com

NetXScope version 7 Manual

NetXScope version 8 Manual

More great products from Drastic

videoQC - Automated and Visual Video QC Tools

videoQC is a suite of video and audio analysis and playback tools with both visual and automated quality checking tools. videoQC will take the media coming into your facility and perform a series of automated tests on video, audio and metadata values against a template, then analyze the audio and video. It includes...

Video I/O Software

Net-X-Code Server - enterprise level ingest, transcode and output

Net-X-Code Server provides a comprehensive and scalable set of tools for multichannel media ingest, clip/PFR/transcode, and output, and supports a wide range of industry standard file and IP stream formats.

Network Streaming/PFR

netxcode logosmall

MediaReactor Workstation - plugins for editors

MediaReactor plugins provide read and write support for a wide range of file types in Adobe/Avid/Resolve etc. editors, along with edit while record...

File Conversion/Plugins

Trademarks, Registered Trademarks, and Copyrights

Trademarks, Registered Trademarks, and Copyrights

Adobe, Inc. - Adobe, the Adobe logo, Adobe Premiere, Adobe After Effects, Creative Cloud, Frame.io, and Iridas are either registered trademarks or trademarks of Adobe in the United States and/or other countries.
AJA Video Systems, Inc. - AJA® is a registered trademark of AJA Video Systems, Inc. AJA™ is a trademark of AJA Video Systems, Inc. Corvid Ultra®, KONA®, IO®, U-Tap®, and T-Tap® are registered trademarks of AJA Video Systems, Inc.
Apple Inc. - Apple, the Apple logo, Final Cut, Final Cut Pro, Apple TV, iOS, iPad, iPhone, iPod touch, iTunes, Mac, Mac OS X, macOS, Shake, Final Cut Pro, ProRes, High Sierra, Mojave, and QuickTime are trademarks of Apple Inc., registered in the U.S. and other countries.
ARRI AG – ARRI, Arri T-Link, and Alexa are registered trademarks of the ARRI Group
Avid Technology, Inc. - Avid Media Composer®, Avid MediaCentral®, Avid Interplay®, and Avid NewsCutter® are either trademarks or registered trademarks of Avid Technology, Inc. or its subsidiaries in the United States and/or other countries.
Blackmagic Design Pty. Ltd. - DaVinci Resolve, DaVinci Fusion, UltraStudio, DeckLink, Intensity Pro 4K, UltraScope, and RED are either trademarks or registered trademarks of Blackmagic Design Pty. Ltd. or its subsidiaries in the United States and/or other countries.
CANON KABUSHIKI KAISHA - CANON is a trademark of CANON KABUSHIKI KAISHA
CineSys LLC – CineSys is a registered trademark of CineSys LLC.
Drastic Technologies, Ltd. – trademarks specified here.
DSC Labs - DSC Labs' CamBook, CamAlign, and ChromaDuMonde charts are trademarks or registered trademarks of DSC Labs
Matrox Electronic Systems, Ltd - Matrox and Matrox product names are registered trademarks and/or trademarks of Matrox Electronic Systems, Ltd.
Microsoft Corporation – Microsoft: Windows®, Video For Windows (VFW), DirectShow, Microsoft, Skype, Microsoft Azure, Microsoft Teams, Wave Mapper, Microsoft, Windows NT|2000|XP|XP Professional|Server 2003|Server 2008 |Server 2012, Windows 7, Windows 8, Media Player, Media Encoder, Windows Defender, Microsoft Office, .Net, Internet Explorer, SQL Server 2005|2008|2012|2014, Windows Media Technologies and Internet Explorer are trademarks of Microsoft Corporation.
NewTek, Inc. - NDI, TriCaster, 3Play, TalkShow, Video Toaster, LightWave 3D, and Broadcast Minds are registered trademarks of NewTek, Inc.
NVIDIA Corporation - NVIDIA, the NVIDIA logo, NVIDIA Quadro, Rivermax, BlueField2, PhysX, and NVIDIA RTX are trademarks and/or registered trademarks of NVIDIA Corporation in the U.S. and/or other countries
Panasonic Holdings Co., Ltd - Panasonic, and Varicam are trademarks of Panasonic Holdings Co., Ltd
Red Hat, Inc. - Red Hat, and the Red Hat logo are trademarks or registered trademarks of Red Hat, Inc. or its subsidiaries in the United States and other countries
Society of Motion Picture and Television Engineers - SMPTE is a trademark of Society of Motion Picture and Television Engineers.
Sony Corporation – Sony, Sony DVD Architect, DVD, Catalyst, and Vegas are trademarks of Sony Corporation and/or its affiliates.
Tektronix, Inc. - Tektronix® and all identified Tektronix trademarks and logos are the property of Tektronix, Inc. or its wholly-owned subsidiaries
All other trademarks are the property of their respective owners.

NetXScope

ST-2110 and IP Stream Waveform Vectorscope Tools

NetXScope

Video Scopes

Audio Scopes

Picture Modes

Advanced Features

Main Use Cases

Technical Specifications

If you aren't using ST-2110

Optional Upgrades

For File Based Workflows

90 Seconds With 4KScope

Full HDRScope demo / walkthrough

Remote Desktop with 4KScope

Video Inputs

Audio Inputs

Outputs

Format Support

Processing Modes

Metadata

Recommended Hardware

Download NetXScope Software

End User License Agreement: International Canadian

NetXScope version 7 Manual

NetXScope version 8 Manual

More great products from Drastic

videoQC - Automated and Visual Video QC Tools

Net-X-Code Server - enterprise level ingest, transcode and output

MediaReactor Workstation - plugins for editors

Products

Support

Contact Us
