GPI Configuration

gpi chipMost Drastic DDR and video I/O products (like MediaNXS, DTReplay, SyncControl Pro) support a variety of GPI interfaces. Because of the variety of hardware and usage types, the GPI configuration is an advanced configuration. This document describes the setup and use of GPI devices with Drastic DDR, MediaNXS and other Drastic software.

GPI Control

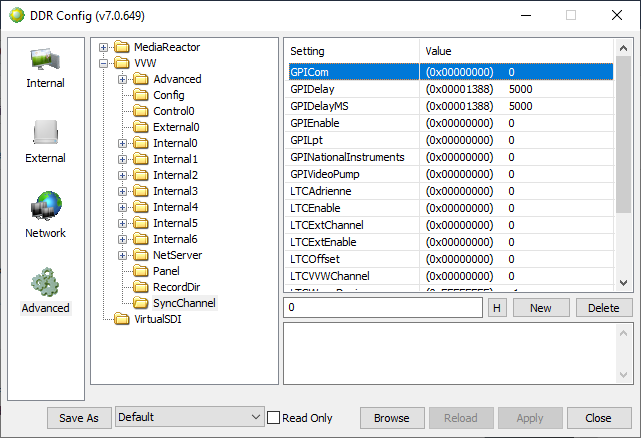

GPI configuration is only available via the DDRConfig application shipped with Drastic software. To set up and change what the GPI does, run DDRConfig and select the Advanced icon on the left. Open the /VVW/SyncChannel branch of the tree. In that part of the config you will find the settings as described below:

Selecting the GPI hardware

The various supported GPI hardware can be enabled by enabling GPI generally with the GPIEnable = 1 settings, and then setting their configuration variable to 1 and then setting any secondary control settings.  Supported hardware includes:

  • GPIOnTrak - Use an OnTrak device for GPI O/O.  Up to 8 inputs/8 outputs depending on device.
  • GPILpt - Use the parallel port as a GPI device.  8 inputs/8 outputs on data TTL data lines.  32 bit only.
  • GPICom - Use a COM port's pins as a GPI device.  1 input/1 output.  Special setup only.
  • GPIVideoPump - Use the VideoPump GPI signals.  Legacy, board no longer available.
  • GPINationalInstruments - Use the National Instruments board.  Legacy, ISA bus no longer available.

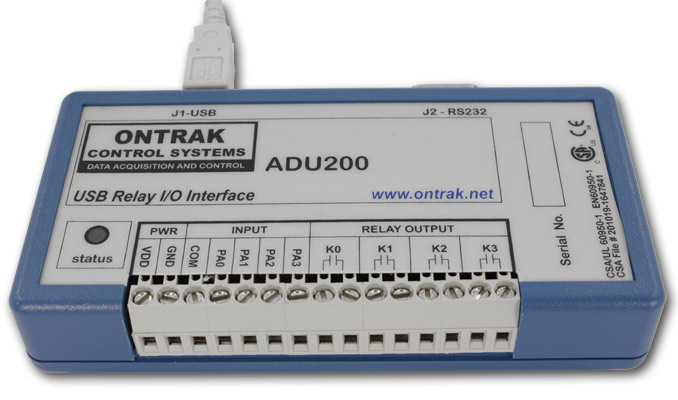

Supported devices include:  ADU200

Configuration:  There are no configuration variables for this hardware

Hardware Inputs:  GPI 0..8 follow the hardware markings PA0..PA8

Hardware Outputs:  GPI 0..8 follow the hardware markings K0..K8

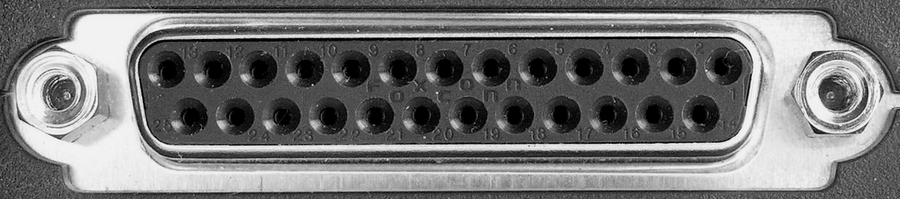

Supported devices include:  The first LPT parallel port (Windows Only)

Configuration:  There are no configuration variables for this hardware

Hardware Inputs:  GPI 0..8 follow the data pins 0..8

Hardware Outputs:  GPI 0..8 follow the data pins 0..8

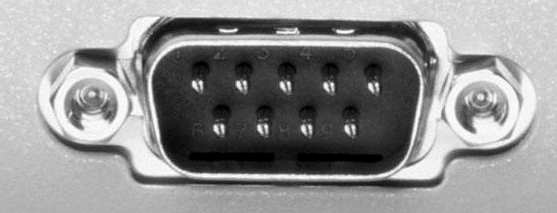

Supported devices include:  The first COM port (Windows Only)

Configuration:  There are no configuration variables for this hardware

Hardware Inputs:  GPI in is the DSR line

Hardware Outputs:  GPI out is the DTR line


Supported devices include:  VP 601, VP 801, VP 811

Configuration:  There are no configuration variables for this hardware

Hardware Inputs:  GPI in is as marked

Hardware Outputs:  GPI out is as marked

National Instruments

Supported devices include:  None available - Please see your original VVW documentation for details


Using GPIs

There are two ways GPI signals are controlled in Drastic software:  Application GPI and System GPI.

Application GPI

Applications like QuickClip, DTReplay and HDReplay have application level configurations that control the meaning of GPIs that are sent and received.  In the case of QuickClip, they are used for playlist and routing changes.  For HDReplay, they receive commands from operator buttons and signal pagers and timers.  When these applications are running they override the standard GPI configuration.  For more information, see your application documentation.

System GPI

If there is no specific application running the GPI, the commands are interpreted as 'System GPI' commands.  This is a standard set of commands targeting the primary DDR channel that provide basic control functionality for switchers and automation systems.  This functionality can be disabled by setting the GPIEnableSystemGPI to 0 (the default is 1).  Disabling the system GPI is recommended if you are using Application GPI so there is no transitional interference to the signals.  The commands and triggers available are as follows:


Input GPIs

0.   Send timed play command

1.   Send pause

2.   Send timed record command

3.   Send full stop e/e

4.   Send re seek to start of clip

5.   Play forward at speed

6.   Play backward at speed

7.   Loop clip


Output GPIs

0.   In play or record

1.   In play

2.   In record

3.   In stop e/e

4.   In pause

5.   In loop mode

6.   Playing forward

7.   Playing backward


Depending on how many inputs or outputs the hardware has, not all of these will be available.  The most important have been placed in the first few GPI signals so they are available on as many systems as possible.  Also, the voltage and amperage level required, and the device's tolerances must be taken into account when connecting hardware to it.  Please see the individual device manuals for details.

For timed play and record, the amount of time to wait is set in the GPIPlayDelay and GPIRecordDelay.  This is the number of video frames delay from the time the GPI is received to the start of the actual play or record.  This value should always be greater than 6 frames of video to guarantee frame accuracy.

For the play at speed commands, the speed is set by the configuration variable GPISpeed.  The GPISpeed uses an internal speed representation from Drastic's MediaCMD architecture.  Basically, normal play speed is equal to 65520.  Other speeds are represented by integers on a linear scale.  Here are a few examples:


Speed Meaning
0 Pause
32760 50 % normal play speed
43680 66 % play speed
65520 Normal play speed
98280 150 % play speed (1.5 times)
655200 10 times play speed


The play speed should be a positive integer.  The reverse speed will automatically set it to negative.

The GPIDelayMS can be used to 'de-bounce' noisy incoming GPI signals.
